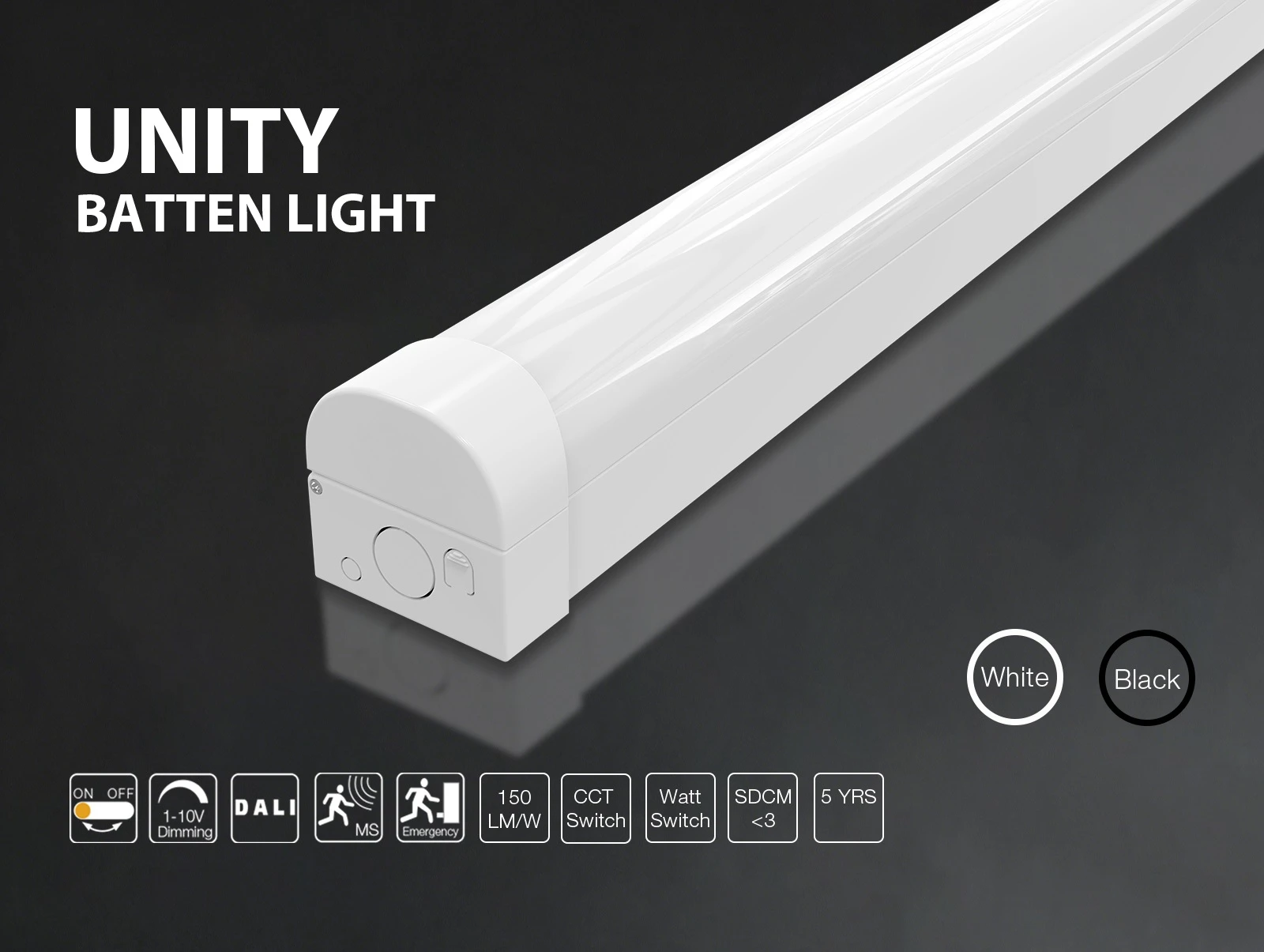

Unity Batten Light

Unity Batten Light

Description:

Unity LED batten utilises high performance LEDs to offer outstanding lumen efficiency. With switchable CCT and are suitable for a wide range of applications including warehouses, factories and garages. The product range also has the option to install an emergency module and microwave sensor.









Feature:

> CCT & Wattage adjustable on LED driver

> High efficiency up to 155lm/w

> Optional plug-in emergency and microwave sensormodule available

> 20mm Conduit entry

> Easy instsallation with press and release end caps to open the cover

> 5 years warranty

Send Inquiry
Download
Description
Technical Parameters

INTRODUCTION

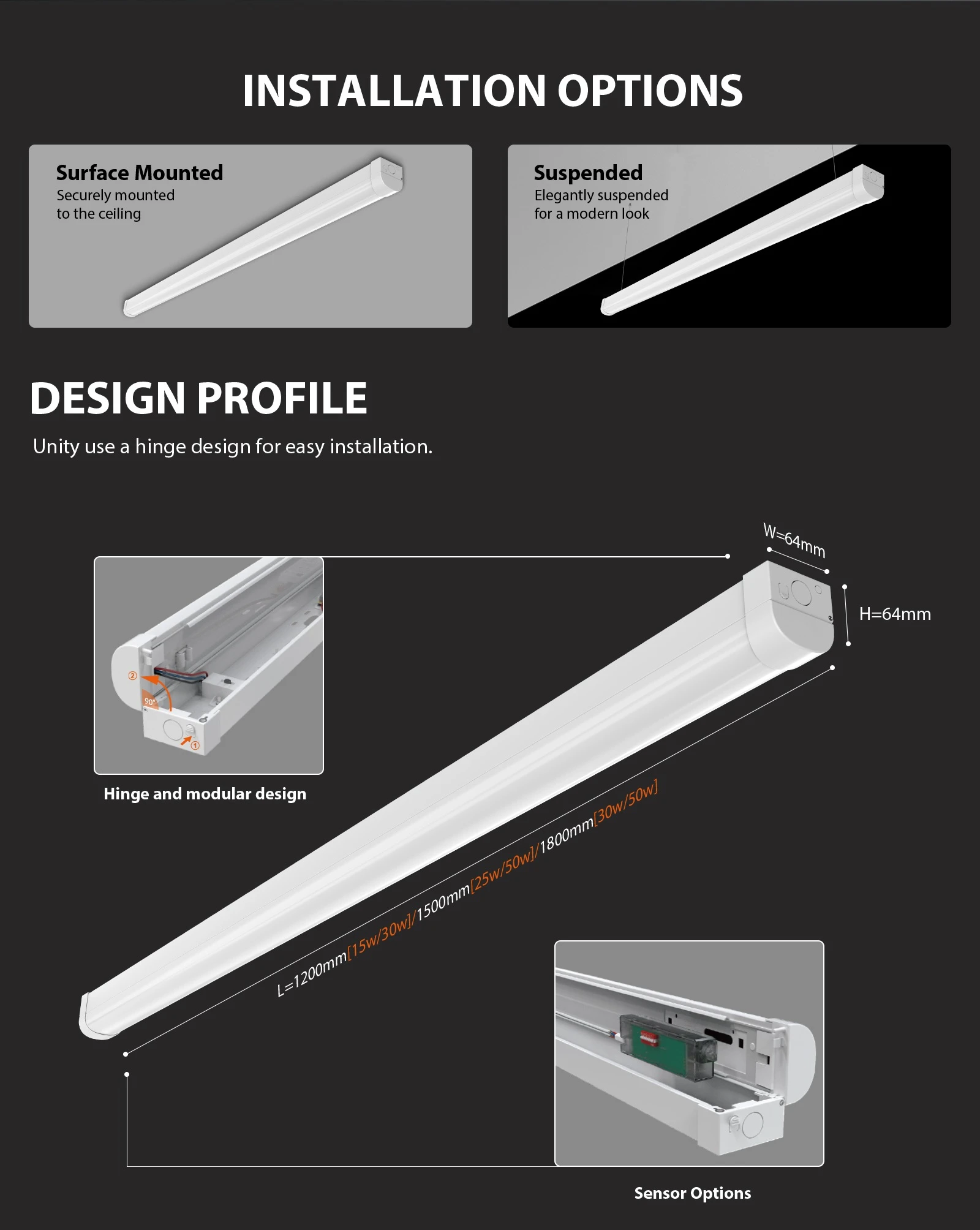

The Unity batten light features a hinge design with a press button for easy installation. It is available in a 64mm width, making it particularly suitable for modern commercial and residential lighting designs.



Order Code

Width

Rated Power

LM/W

Lumen

CRI

SDCM

Watt/CCT
Switch

Product Dimension

GW/CTN

QTY/CTN

BT240-04W-DT2-32F01-00

64

15W/30W

Typ.150

Typ.2250/4500

Ra80/90

<3

Y

L1200xW64xH64

11.5kg

4pcs

BT240-05W-DT2-45F01-00

64

25W/50W

Typ.150

Typ.3750/7500

Ra80/90

<3

Y

L1500xW64xH64

14.5kg

4pcs

BT240-06W-DT2-45F01-00

64

30W/50W

Typ.150

Typ.4500/7500

Ra80/90

<3

Y

L1800xW64xH64

17.8kg

4pcs



Unity01

Unity02

Unity03
