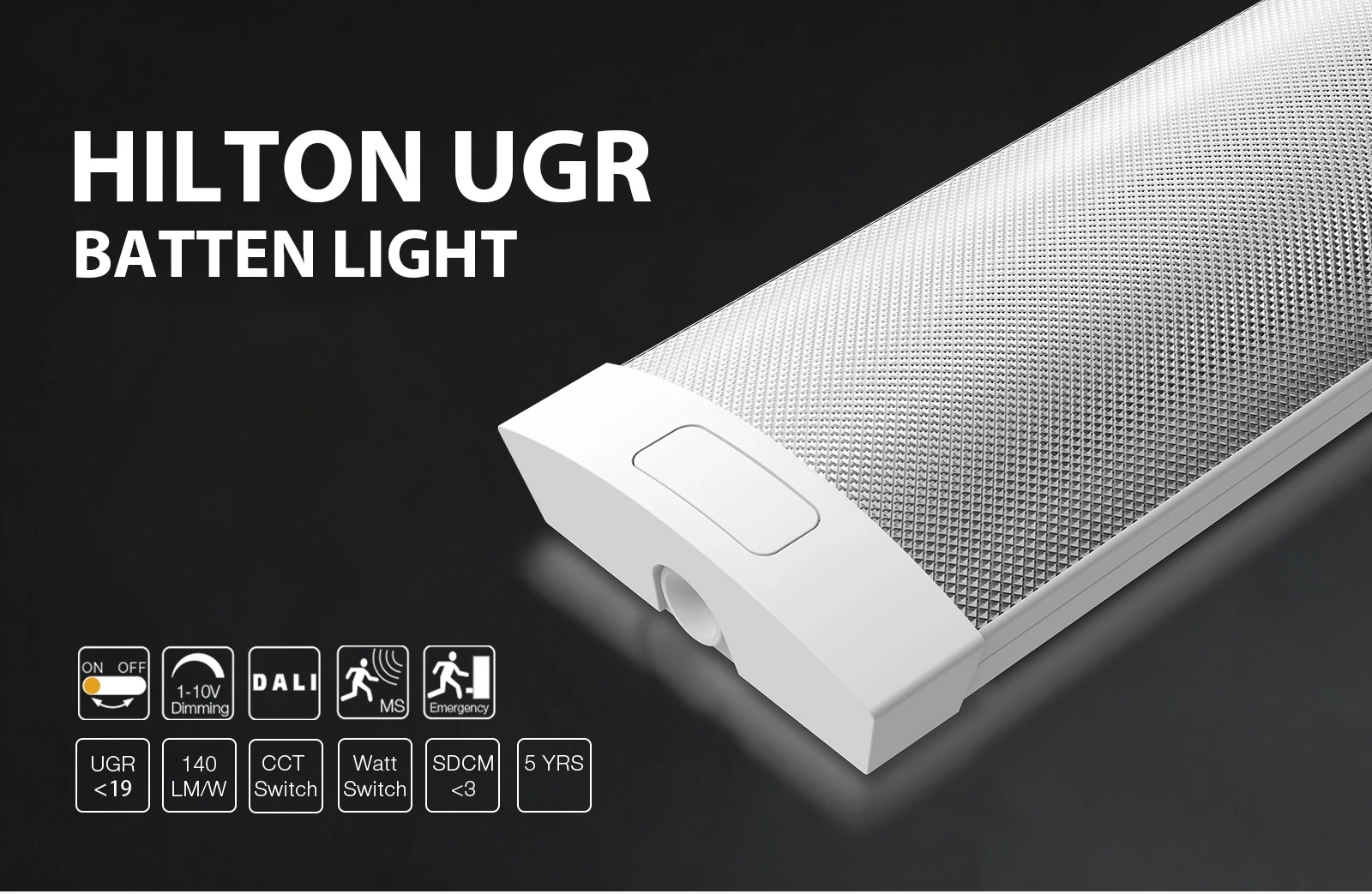

Hilton UGR Batten Light

Hilton UGR Batten Light

Description:

Hilton batten is a new design to use the prismatic PMMA diffuser with UGR, Which makes hilton batten more popular on the commerical and campus applications. The steel case make the hilton batten more costive, Watt and CCT switch on the driver as a standard which make the customer more easier for different applications.









Features:

> UGR<19 with prismatic diffuser

> Power and CCT switch on LED driver

> Ra80 or Ra90, SDCM <3

> Standard base hole for wiring input

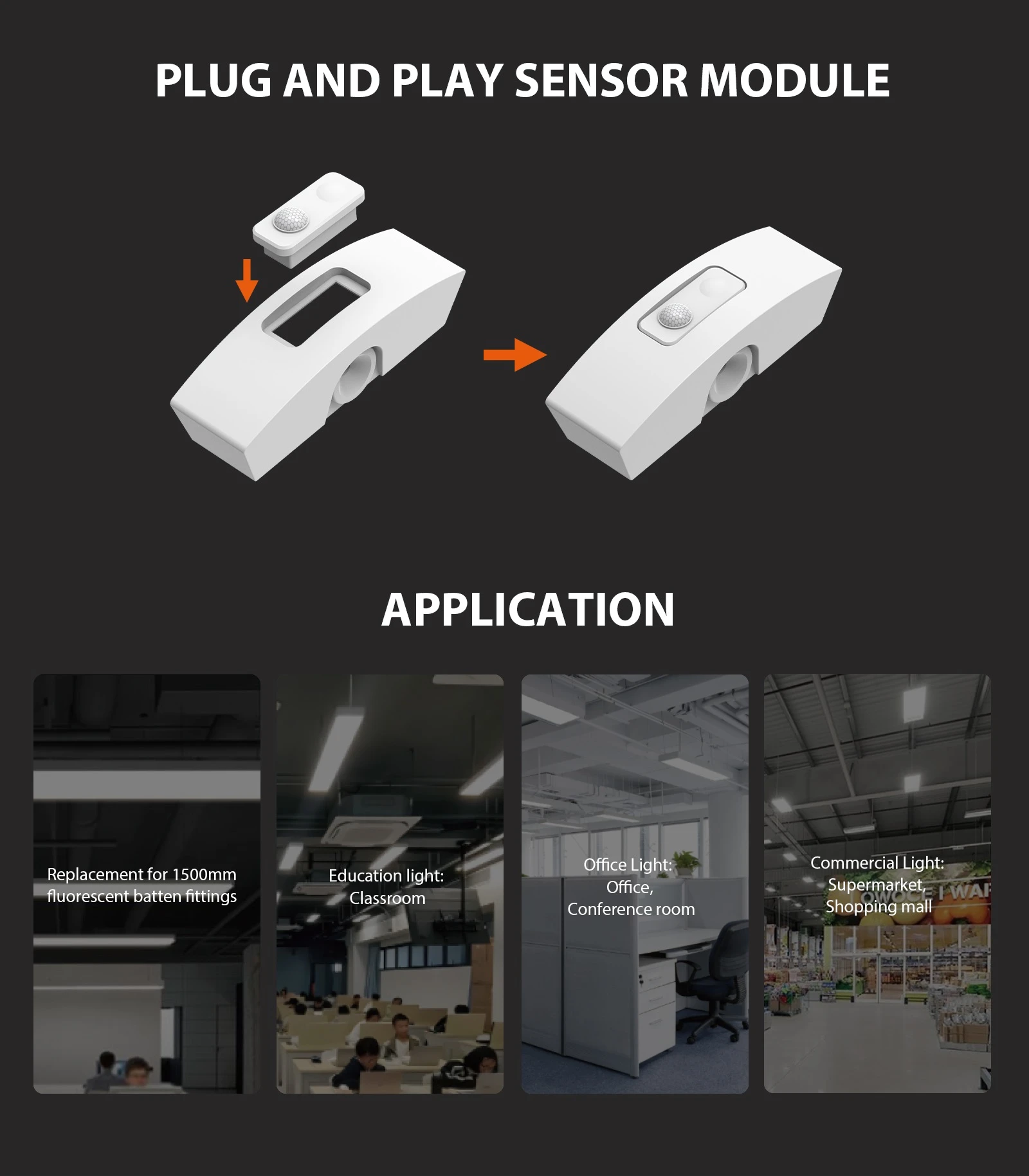

> Various of different functions as options

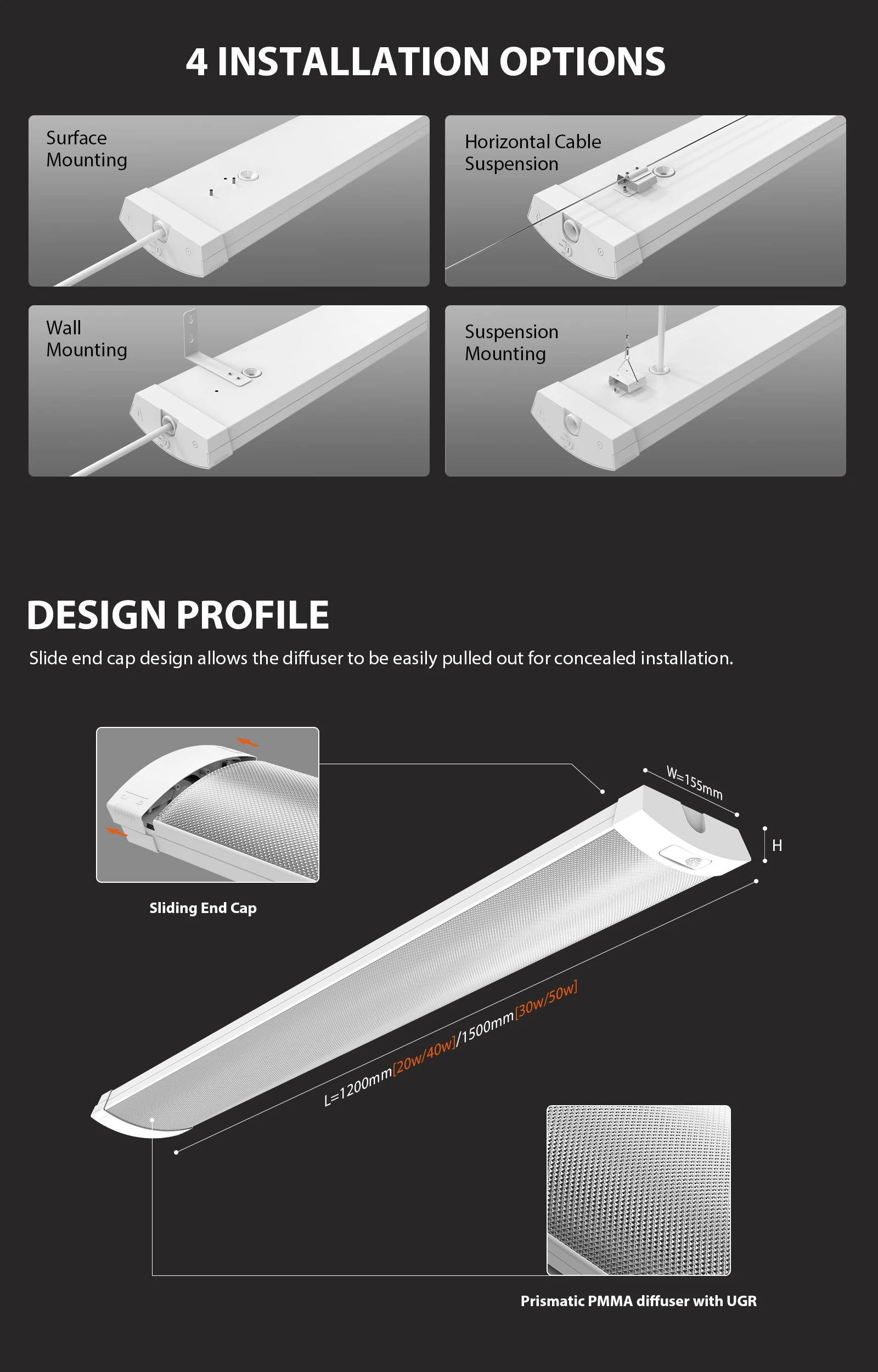

> Surface mounting /Suspension installation

> 5 years warranty

Send Inquiry
Download
Description
Technical Parameters

INTRODUCTION:

Hilton UGR batten lighting is designed as a perfect led batten light fit for offices, schools, libraries with higher lumen output meanwhile provides a low glare function with prismatic diffuser. Aluminum housing provides an excellent heat dissipation. It is easy to install and has replaceable components for quick maintenance.



Order Code

Width

Rated Power

LM/W

Lumen

UGR

CRI

SDCM

Watt/CCT
Switch

Product Dimension

GW/CTN

QTY/CTN

BT320-04W-DT1-40F01

155mm

20/40W

typ.140

typ.2800/5600

UGR<19

Ra80/90

<3

Y

L1200xW155xH52

9.2kg

4pcs

BT320-05W-DT1-50F01

155mm

30/50W

typ.140

typ.4200/7000

UGR<19

Ra80/90

<3

Y

L1500xW155xH52

11.2kg

4pcs



Hilton



Hilton UGR batten -2



Hilton



Hilton UGR batten -4



Hilton UGR batten -5
