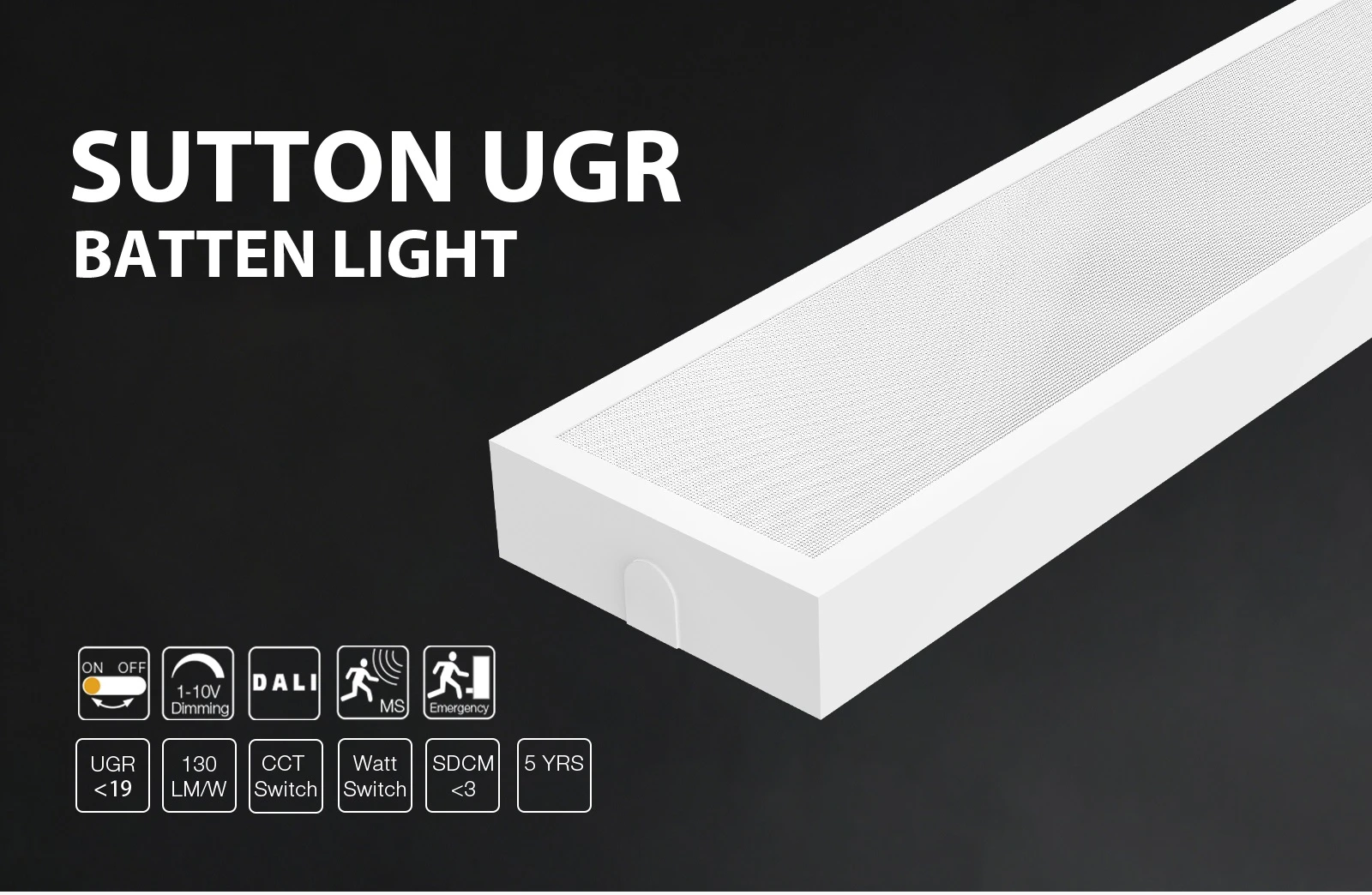

Sutton UGR Batten Light

Sutton UGR Batten Light

Description:

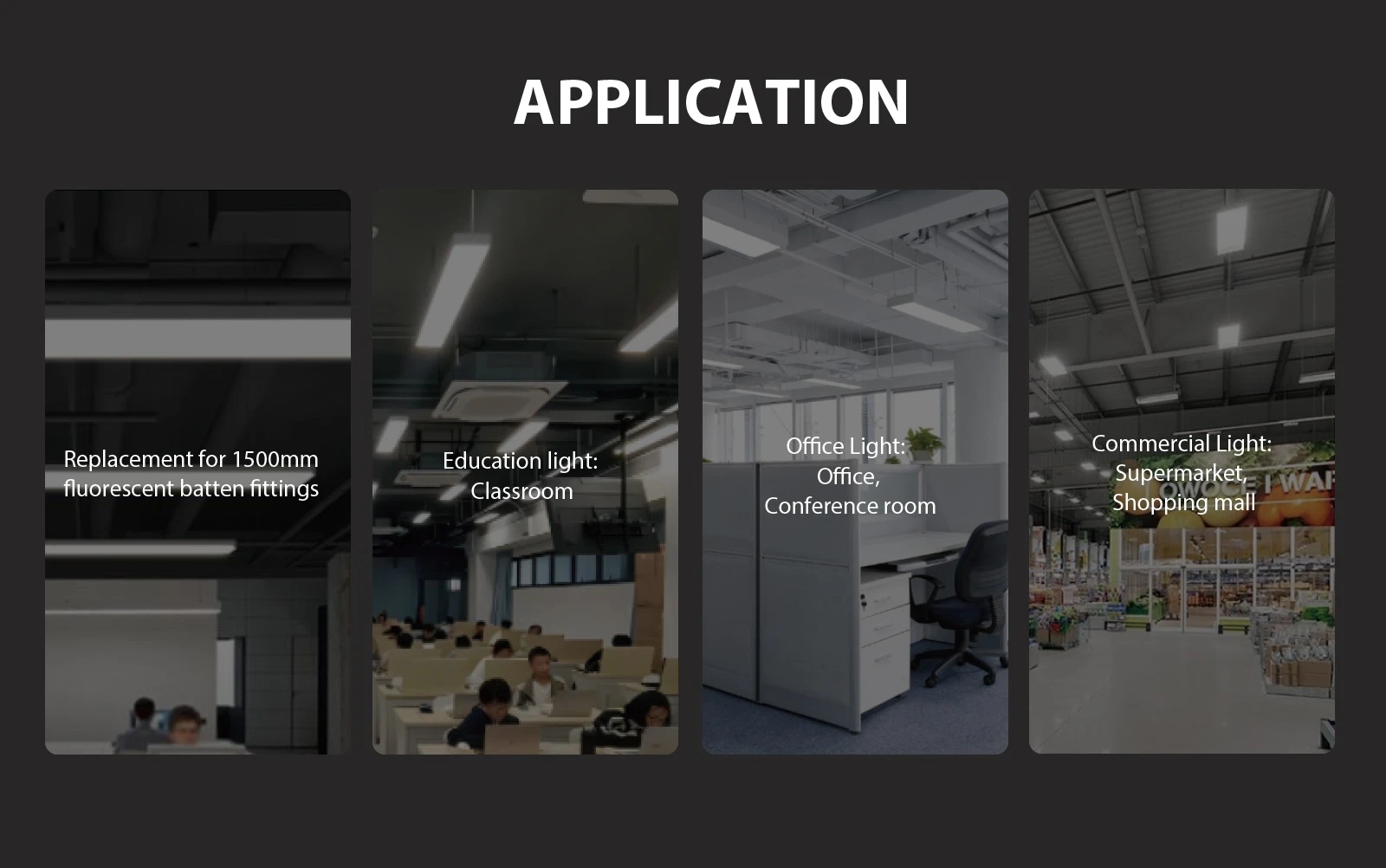

Sutton batten is a 200mm steel low glare linear with various of functions, The insert inner unit makes the sutton batten easy on the installation and replacement. Sutton batten were widely used on the commercial / industrial /office and campus applications.









Feature:

> Prismatic diffuser, UGR<19

> Wattage & CCT switch

> Width: 200mm, multiple linkable

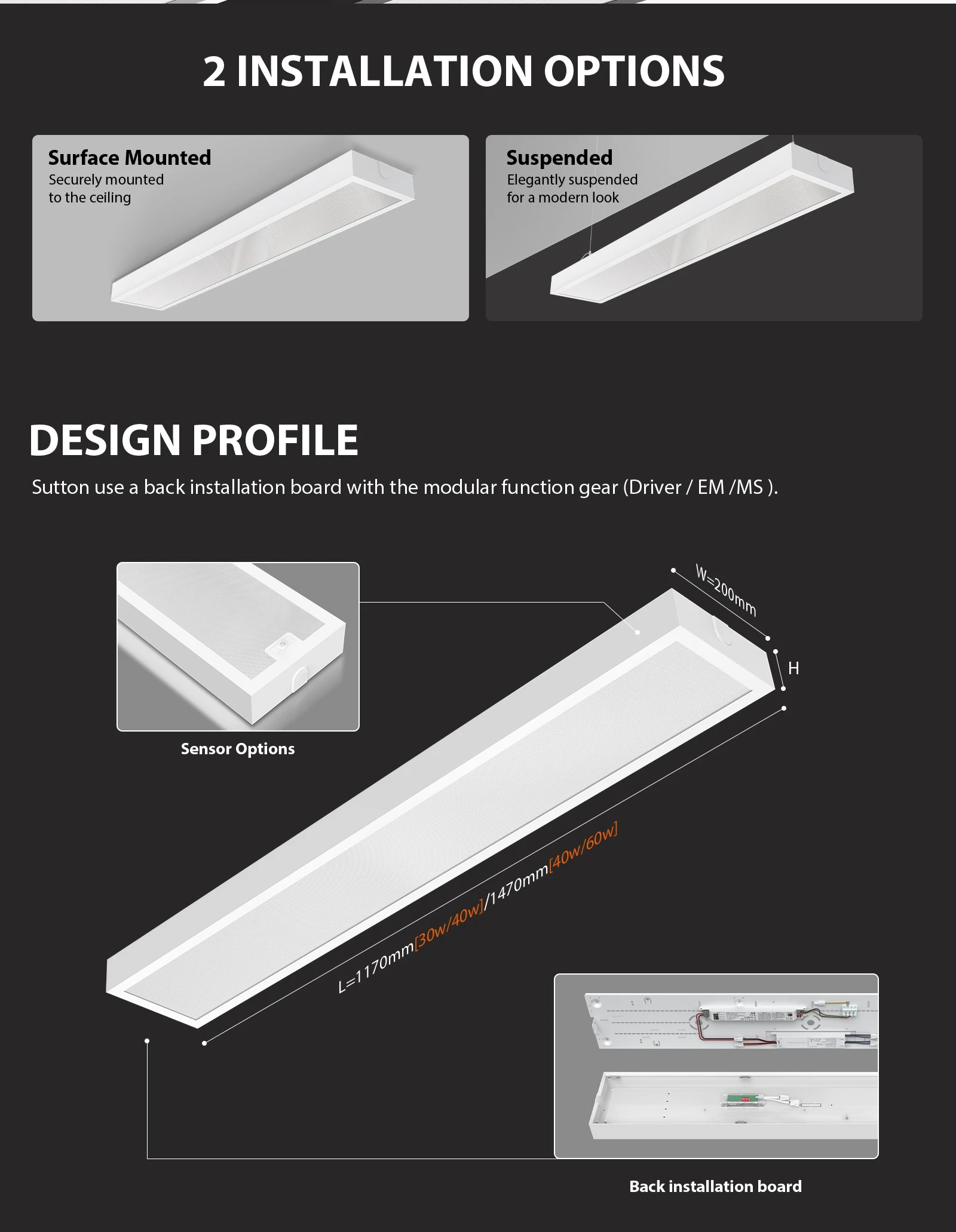

> Multiple installation options

> 5 years warranty

Send Inquiry
Download
Description
Technical Parameters

INTRODUCTION:

Toppo low glare batten is a complete LED lighting solution that replaces traditional light fixtures with UGR data. The battens are more and more popular nowadays because they are more decorative and modern while maintaining higher lumen efficiency. Not only do they reach over 140 LM/W, but they can also achieve UGR<19 in office and education applications.



Order Code

Rated Power

LM/W

Lumen

SDCM/Ra

IP Class

Product Dimension

GW/CTN

QTY/CTN
BH400-04W-PN1-40F01-00 30W/40W typ.140 typ.4200/5600 <3 / Ra80/90 IP20 L1170*W170*H30 22.0kg 4pcs
BH400-05W-PN1-60F01-00 40W/60W typ.140 typ.5600/8400 <3 / Ra80/90 IP20 L1470*W170*H30 25.0kg 4pcs



Sutton batten -1



Sutton batten -2



Sutton batten -3



Sutton batten -4
