Tudor Batten Light

Tudor Batten Light

Description:

Tudor led batten fixture utilises high performance LEDs to offer outstanding lumen efficiency. With switchable CCT and are suitable for a wide range of applications including warehouses, factories and garages. The led batten light tube range also has the option to install an emergency module and microwave sensor.









Feature:

> CCT & Wattage adjustable on LED driver

> High efficiency up to 150lm/w

> Optional plug-in emergency and microwave sensor module available

> 20mm Conduit entry

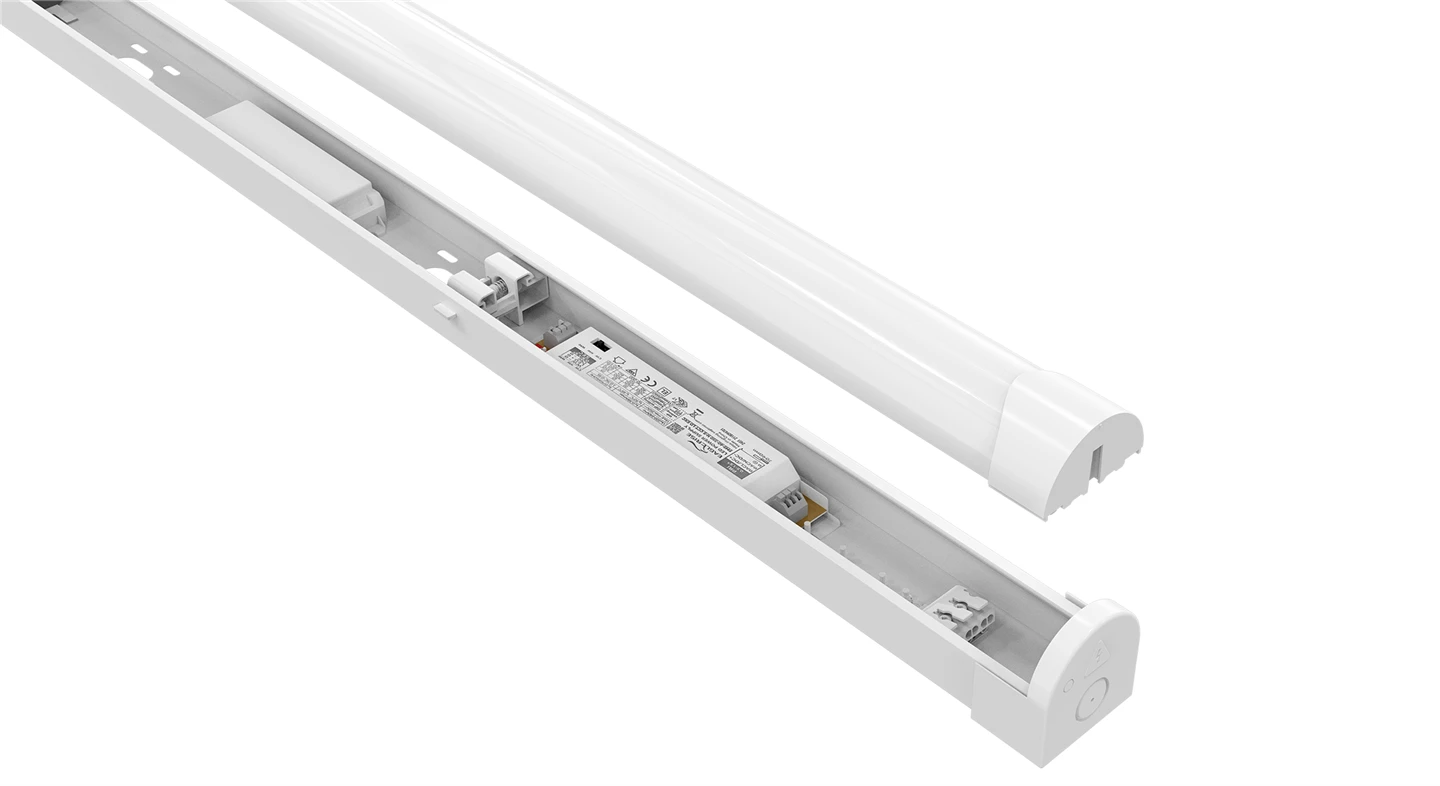

> Easy instsallation with press and release end caps to open the cover

> 5 years warranty

Send Inquiry
Download
Description
Technical Parameters

Order Code

Width

Rated Power

LM/W

Lumen

CRI

SDCM

Watt/CCT
Switch

Product Dimension

GW/CTN

QTY/CTN

BT230-04W-DT2-32F01-00

61

15/30W

Typ.150

Typ.2250/4500

Ra80/90

<3

Y

L1200xW61xH65

11.5kg

4pcs

BT230-05W-DT2-45F01-00

61

25/50W

Typ.150

Typ.3750/7500

Ra80/90

<3

Y

L1500xW61xH65

14.5kg

4pcs

BT230-06W-DT2-45F01-00

61

30/50W

Typ.150

Typ.4500/7500

Ra80/90

<3

Y

L1800xW61xH65

17.8kg

4pcs

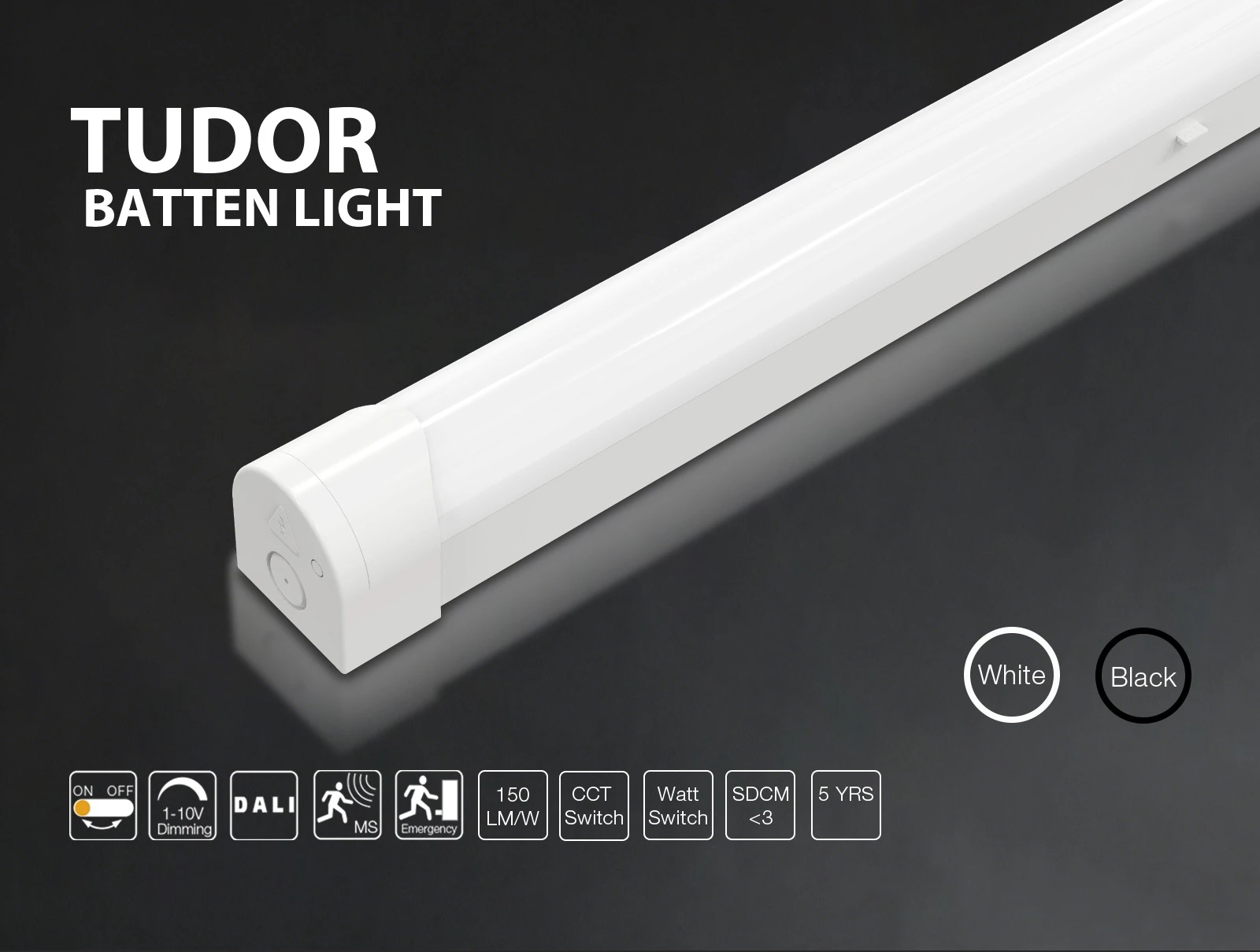

Tudor01

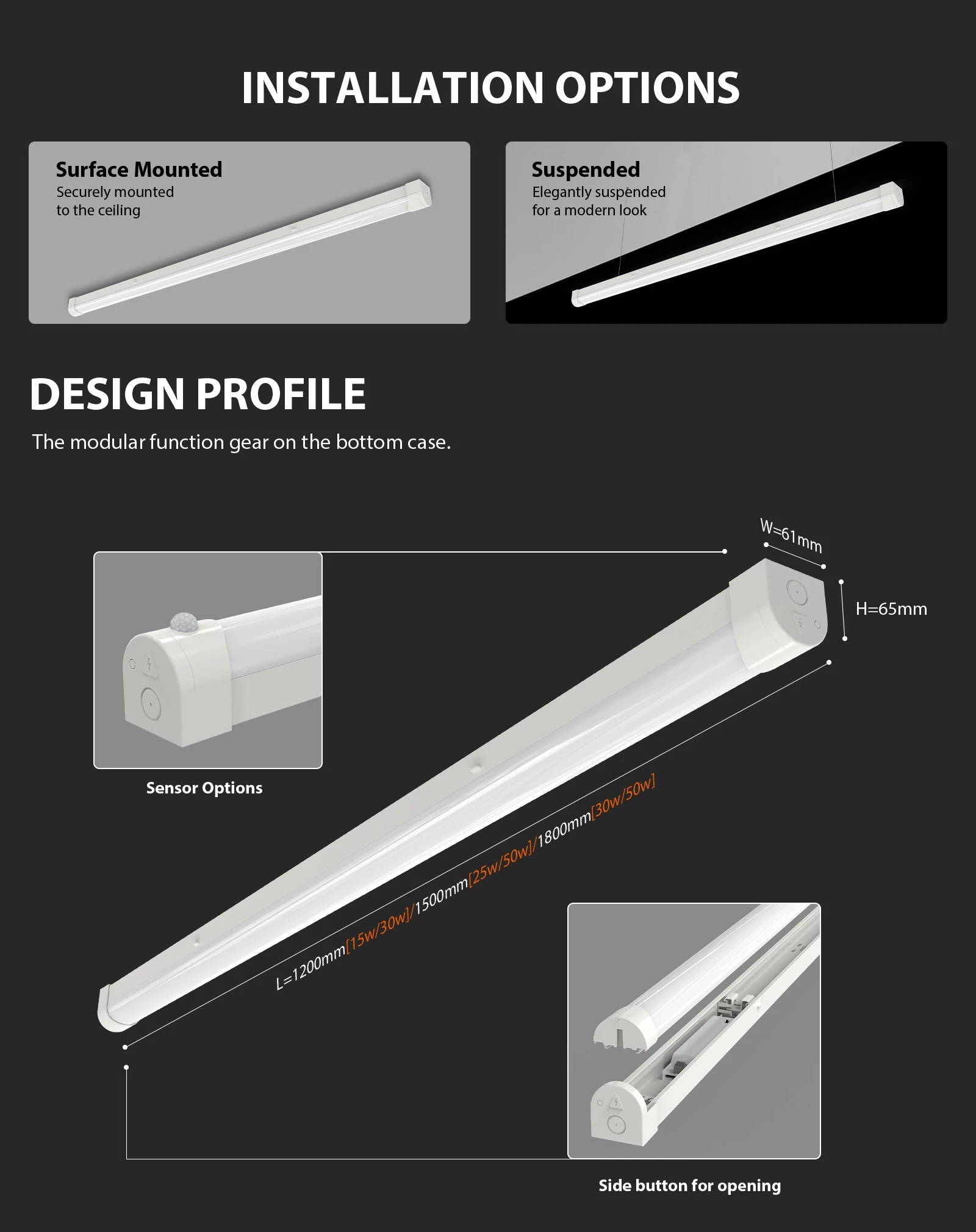

Tudor02

Tudor03
