T8 Slim Batten Light

Name: China ODM T8 Slim Batten Light Manufacturers Suppliers Factory - OEM T8 Slim Batten Light - Toppo Lighting
Brand: Toppo
SKU: 252474238

Slim batten -2

Slim batten -3

Slim batten -4

Slim batten -5

Description:

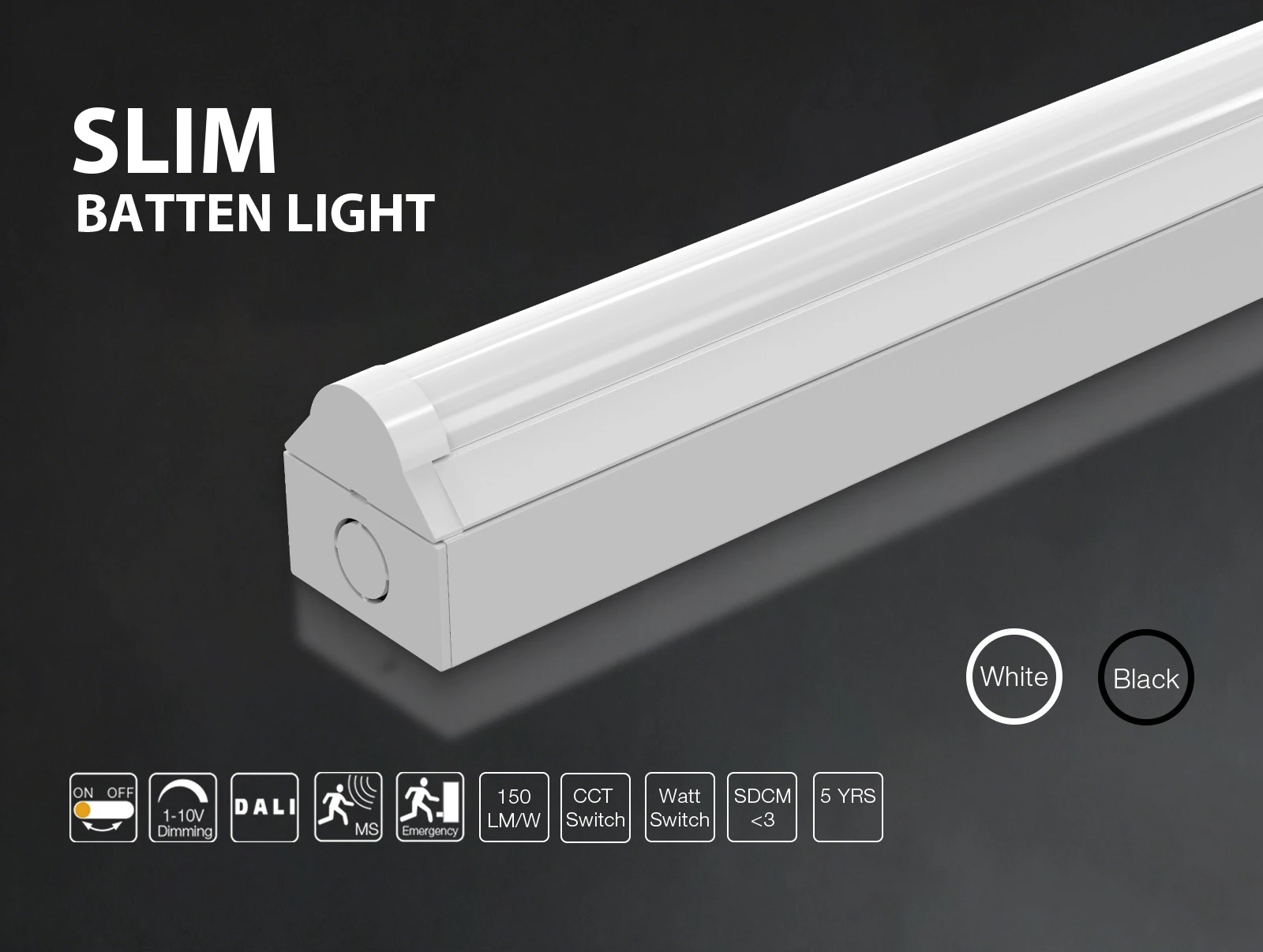

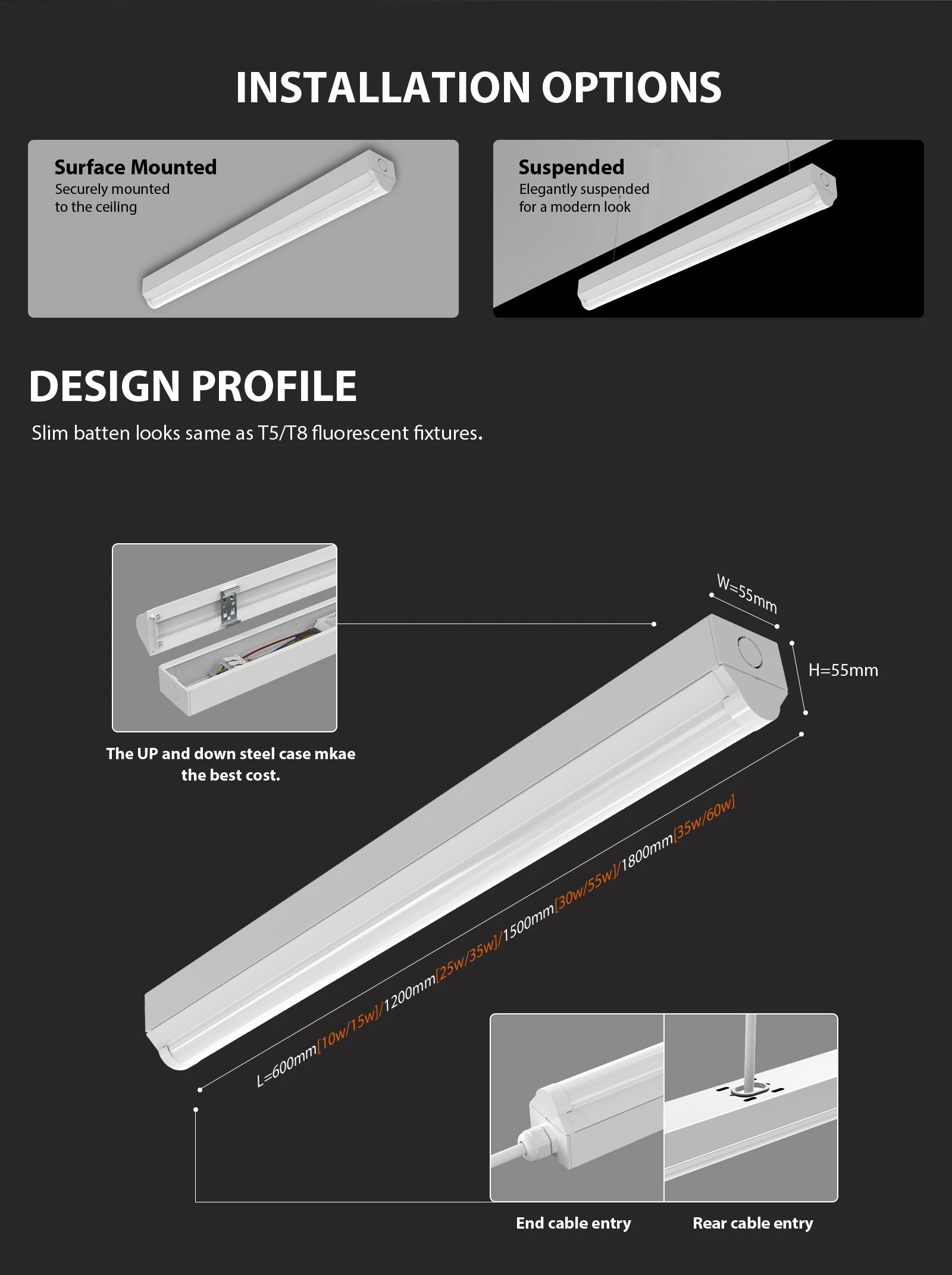

Slim batten light as a patented design of Toppo Lighting, which has brought great commercial value to customers. It is not only the best replacement for traditional T8 light fixture, and also, Toppo uses the most economic in house production steel case. Competitive price is the most prominent selling point of this batten. Slim battens lighting were designed with an up and down steel case, It is exactly the same size as the traditional T8 lighting fixture, which makes it easier installation without additional mounting holes. At the same time, the end and rear cable entries are also as options.

Feature:

> Patent design for T8 fluorescent fitting

> End or rear cable entry

> Multiple Link through end rear

> Easy installation

> 5 years warranty

Send Inquiry

Download

Description

Technical Parameters

INTRODUCTION:

The Toppo T8 Batten Light presents an excellent alternative to traditional T8 fluorescent lighting. Designed with CCT and power driver versatility, it caters to a wide range of client specifications. Available in four standard sizes, it seamlessly replaces T8/T5 fluorescent fixtures. This model boasts a straightforward yet robust construction, enhanced by a milky PC diffuser that minimizes glare while maximizing light transmission efficiency. Toppo T8 slim led batten lamp ensure superior performance and energy efficiency, making them a preferred choice for contemporary lighting projects.

Order Code	Rated Power	LM/W	Lumen	SDCM/Ra	Watt/CCT Switch	Product Dimension	GW/CTN	QTY/CTN
BT200-02W-DT1-20F01	10/15W	Typ.140	Typ.1400/2100	<3 / Ra80/90	Y	L600xW55xH58	6.4kg	10pcs
BT200-04W-DT1-40F01	20/35W	Typ.140	Typ.2800/4900	<3 / Ra80/90	Y	L1200xW55xH58	11.5kg	10pcs
BT200-05W-DT1-50F01	30/55W	Typ.140	Typ.4200/7700	<3 / Ra80/90	Y	L1500xW55xH58	14.5kg	10pcs
BT200-06W-DT1-60F01	30/60W	Typ.140	Typ.4900/8400	<3 / Ra80/90	Y	L1800xW55xH58	17.8kg	10pcs

Slim batten -1

Slim batten -2

Slim batten -3

Hot Tags: t8 slim batten light, China t8 slim batten light manufacturers, suppliers, factory, commercial linear lights, edge lit panel lights, portable panel lights, low voltage panel lights, school linear lights, dimmable linear lights
