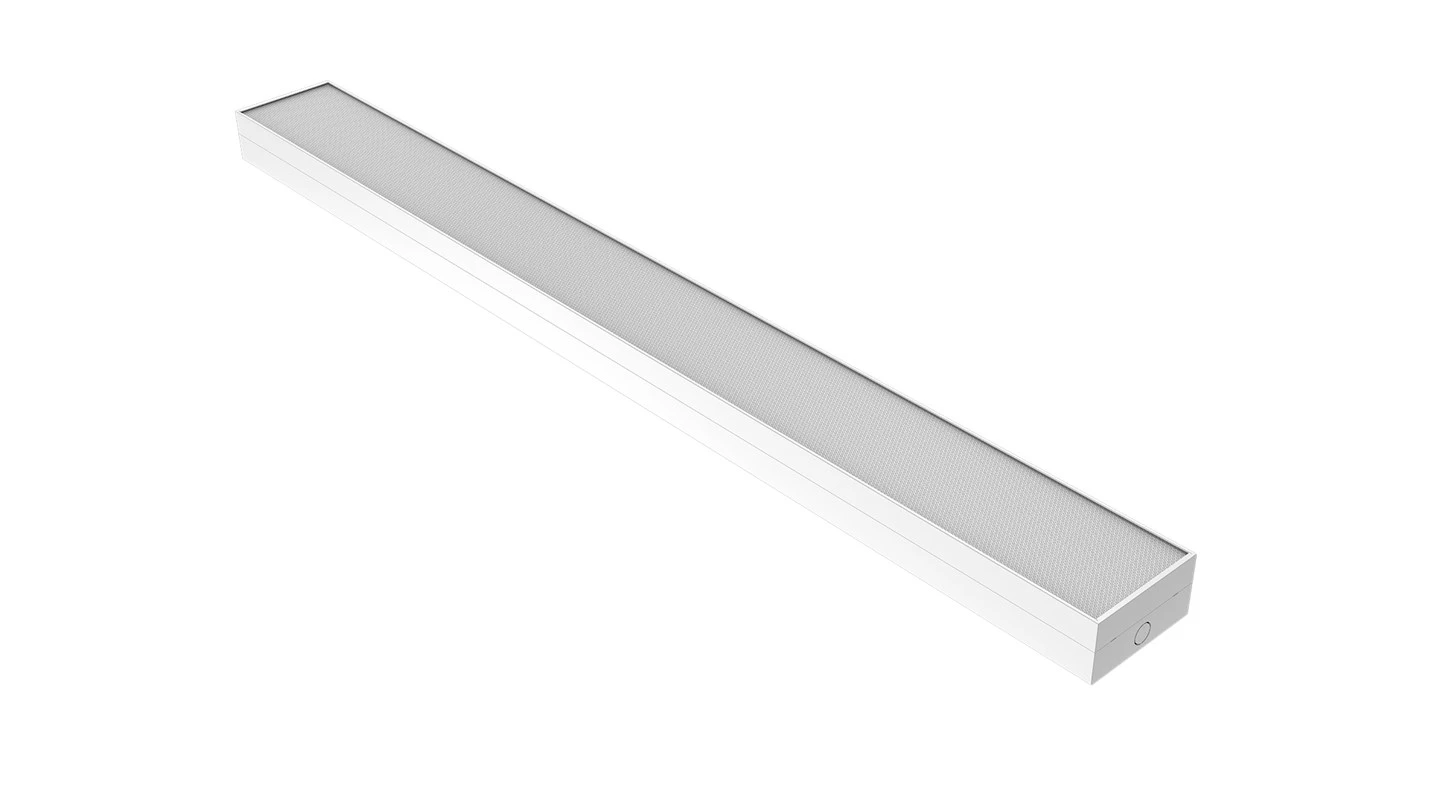

Kingston UGR Batten Light

Kingston UGR Batten Light

Description:

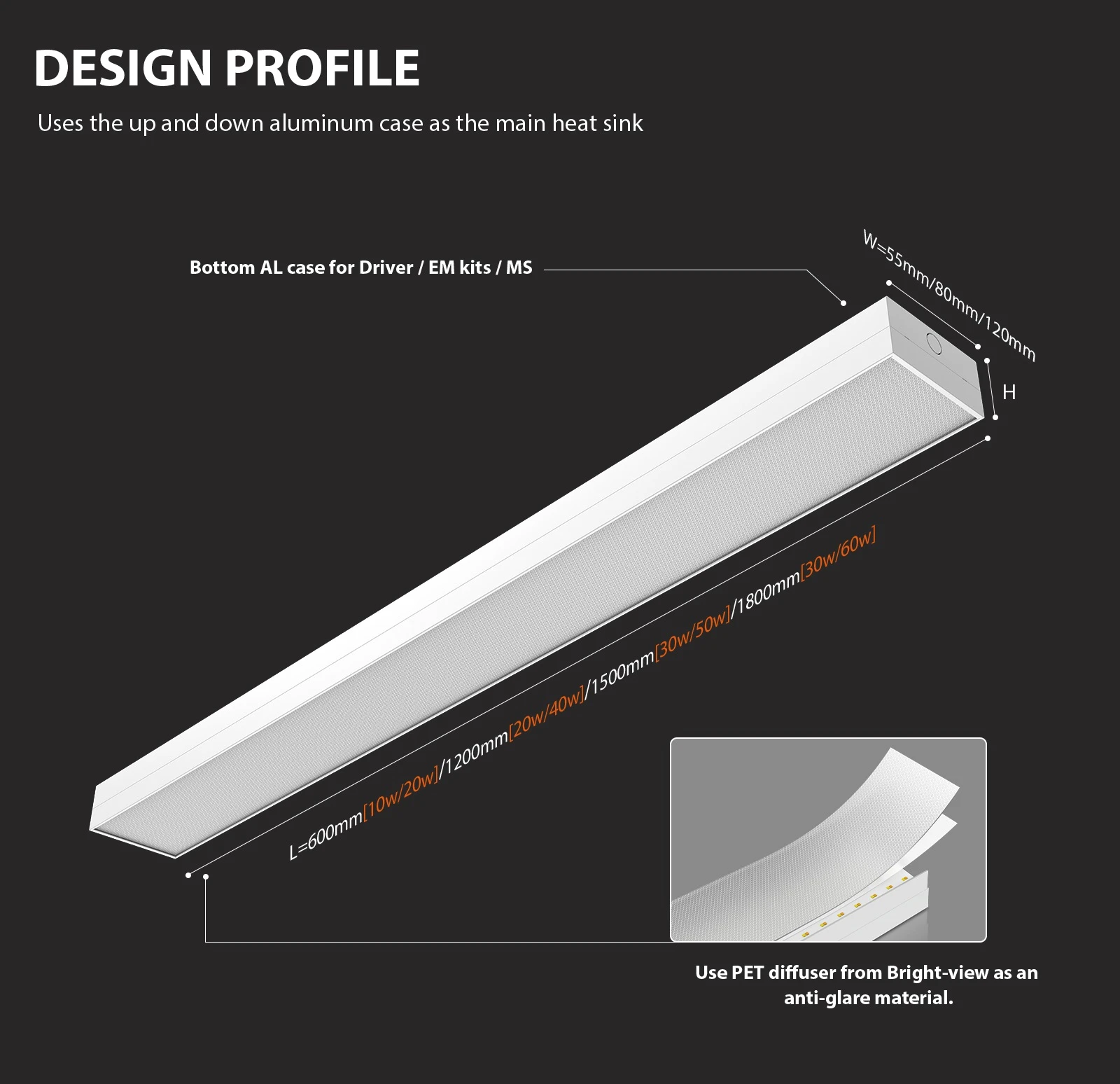

Kingston Batten use the up and down aluminum case as the main heat sink, which not only insure the good heating dissipation, but also provide a long time warranty.
Kingston Batten uses PET diffuser from Bright-view as an anti-glare material, which not only guarantees the UGR<19, but also guarantees the beam angle of these range of batten series. The wattage and CCT switch on the driver as a standard for the kingston battens. It helps customers reduce inventory while also enabling fast delivery.

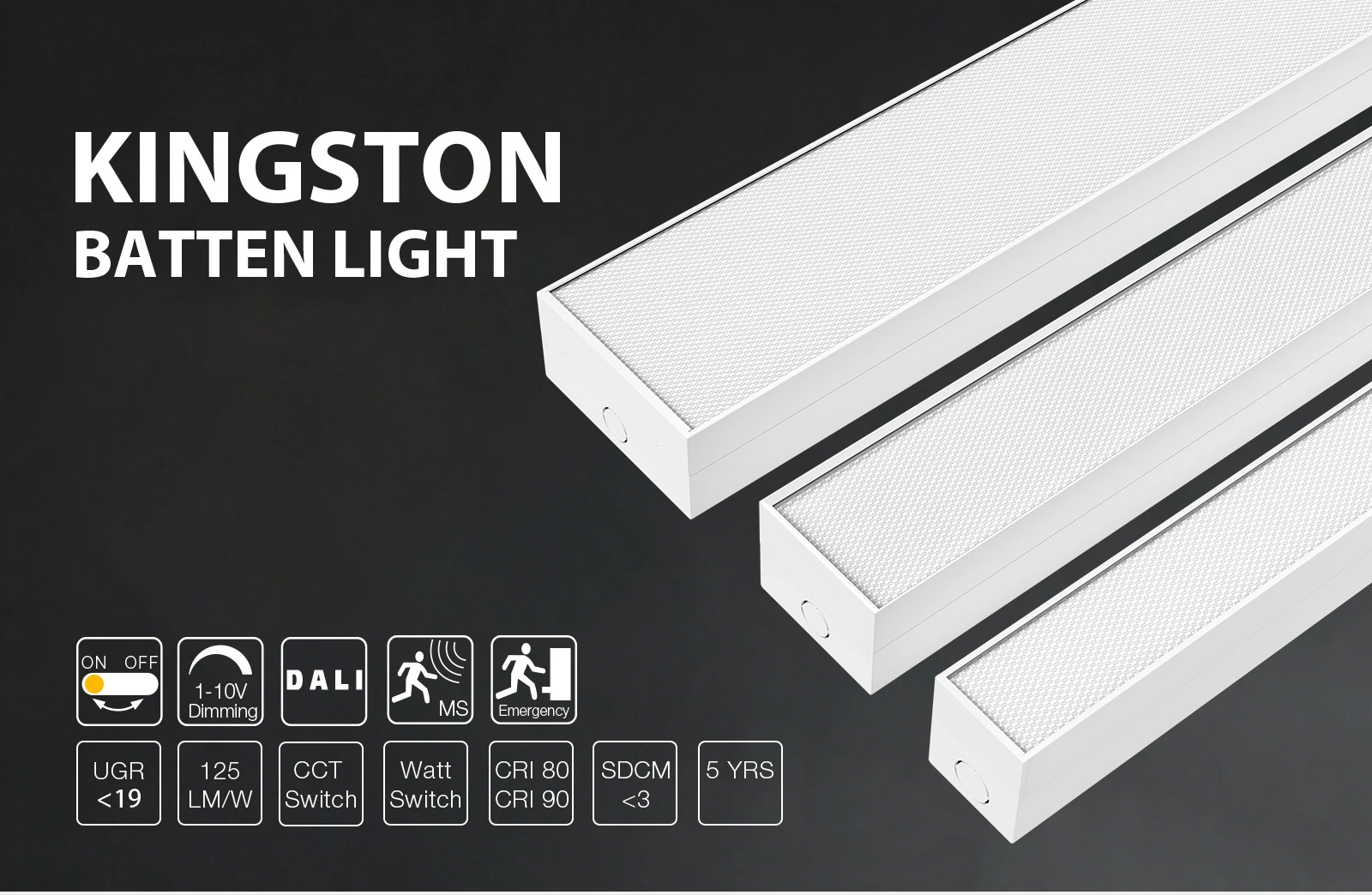

Feature:

> UGR<19 with brightview film

> CCT switch on LED driver

> 55mm | 80mm | 120mm widths available

> Ra80 or Ra90, SDCM <3

> End or rear besa hole for cable entry

> Various of different functions as options

> 2ft / 4ft / 5ft / 6ft dimension avaiable

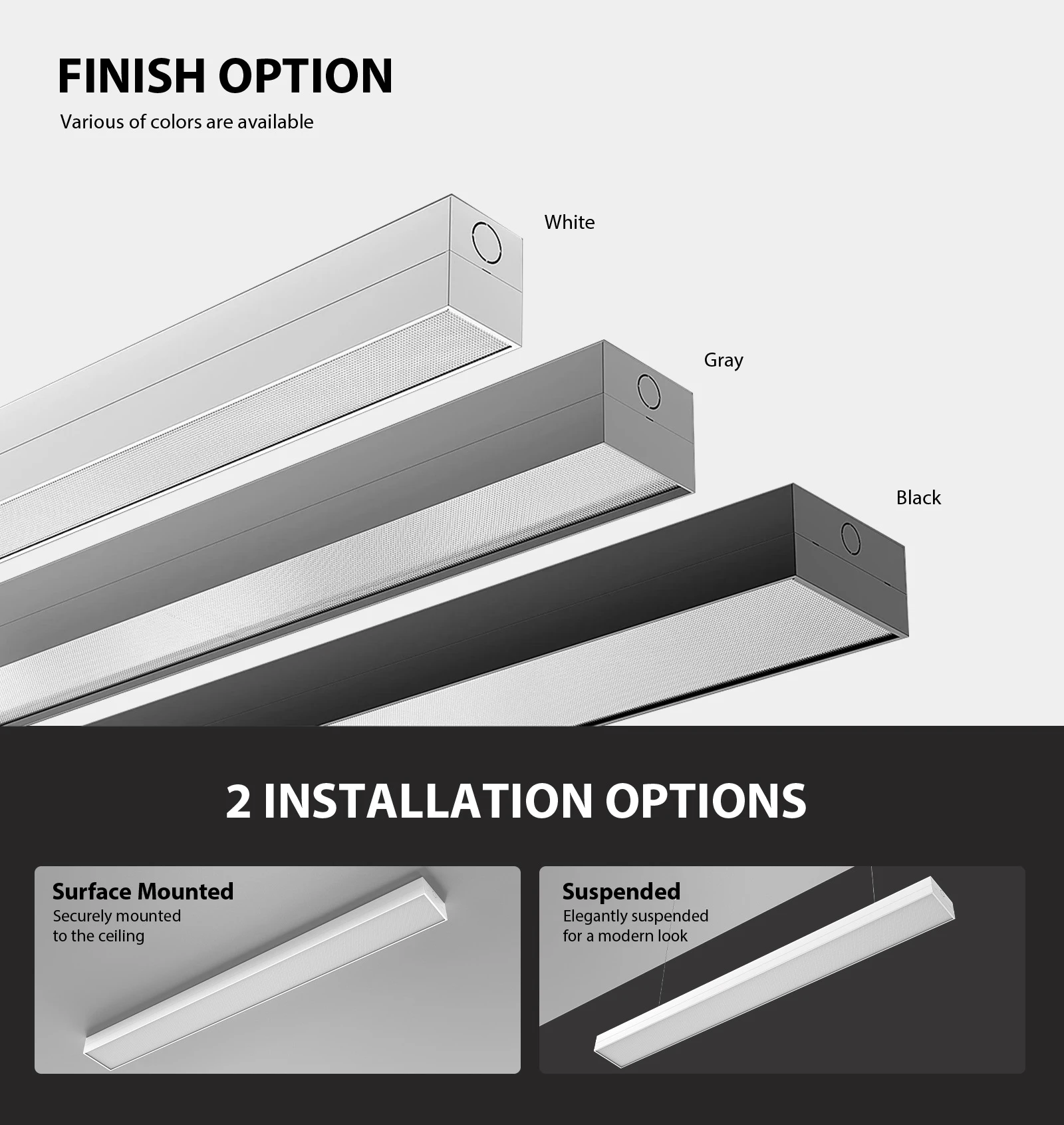

> Recessed / Surface mounting /Suspension installation

> 5 years warranty

Send Inquiry
Download
Description
Technical Parameters

INTRODUCTION:

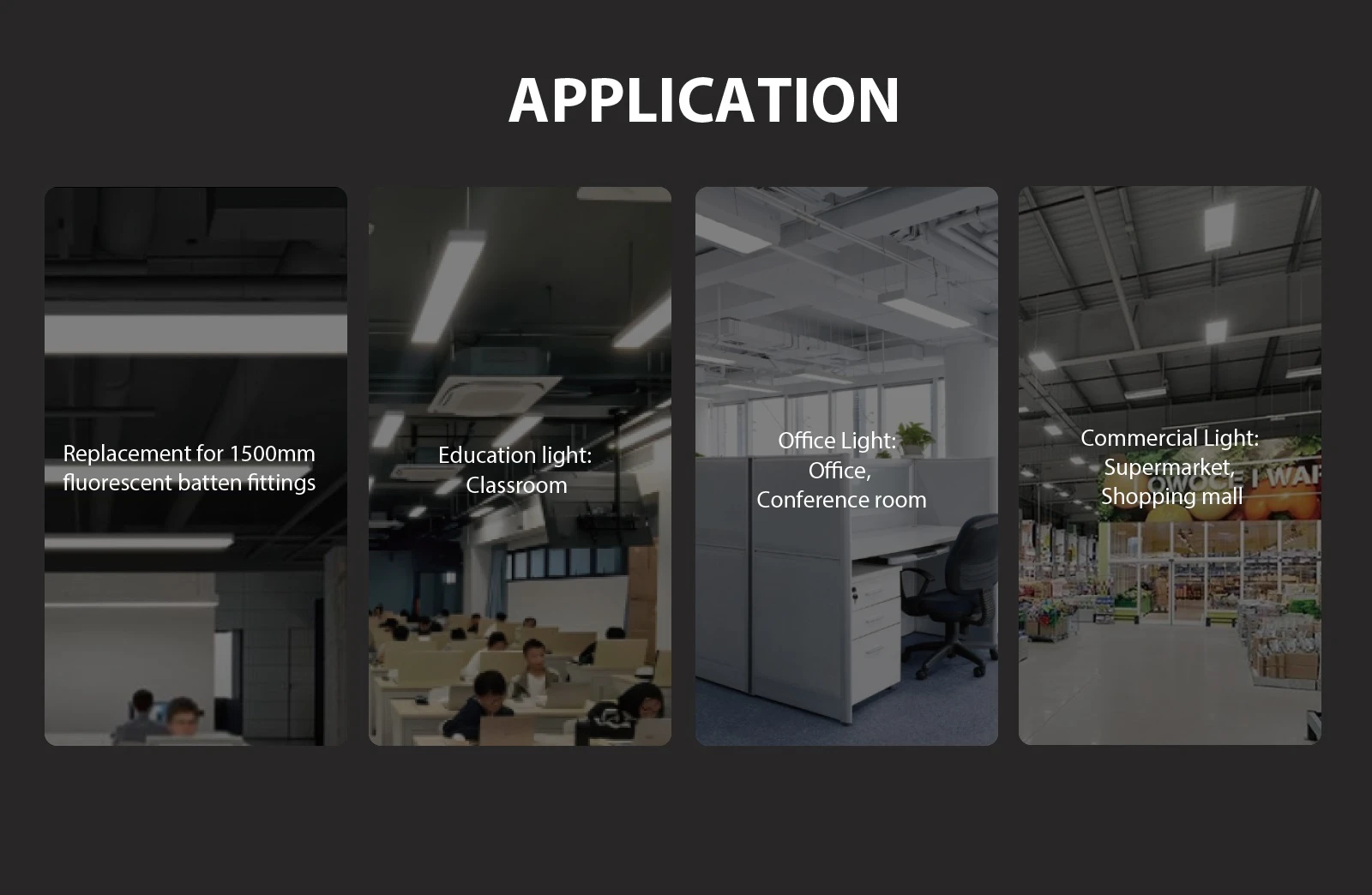

Kinston Batten offers 55mm, 80mm and 120mm widths to choose from, which makes customers more interested in different commercial and office applications.



PROPERTY:

Kingston UGR Batten 55mm is designed to provide superior lighting performance while ensuring maximum visual comfort. Efficient and elegant, this 2ft 4ft 5ft LED strip light is perfect for a wide range of applications from corporate offices to retail environments and industrial settings. The aluminum housing is an excellent heat sink and the high-tech SMD2835 provides increased lumen output.



Order Code

Width

Rated Power

LM/W

Lumen

SDCM/Ra

Watt/CCT
Switch

Product Dimension

GW/CTN

QTY/CTN

BT100-02W-DT1-20F01

55mm

10/20W

typ.130

typ.1300/2600

<3/ Ra80/90

Y

L600xW55xH64

6.0kg

8pcs

BT100-04W-DT1-40F01

55mm

20/40W

typ.130

typ.2600/5200

<3/ Ra80/90

Y

L1200xW55xH64

11.5kg

8pcs

BT100-05W-DT1-50F01

55mm

30/50W

typ.130

typ.3900/6500

<3/ Ra80/90

Y

L1500xW55xH64

14.5kg

8pcs

BT100-06W-DT1-60F01

55mm

30/60W

typ.130

typ.3900/7800

<3/ Ra80/90

Y

L1800xW55xH64

17kg

8pcs

BT110-02W-DT1-20F01

80mm

10/20W

typ.130

typ.1300/2600

<3/ Ra80/90

Y

L600xW80xH64

7.0kg

6pcs

BT110-04W-DT1-40F01

80mm

20/40W

typ.130

typ.2600/5200

<3/ Ra80/90

Y

L1200xW80xH64

12.0kg

6pcs

BT110-05W-DT1-50F01

80mm

30/50W

typ.130

typ.3900/6500

<3/ Ra80/90

Y

L1500xW80xH64

14.0kg

6pcs

BT110-06W-DT1-60F01

80mm

30/60W

typ.130

typ.3900/7800

<3/ Ra80/90

Y

L1800xW80xH64

18.0kg

6pcs

BT120-02W-DT1-20F01

120mm

10/20W

typ.130

typ.1300/2600

<3/ Ra80/90

Y

L600xW120xH64

7.0kg

4pcs

BT120-04W-DT1-40F01

120mm

20/40W

typ.130

typ.2600/5200

<3/ Ra80/90

Y

L1200xW120xH64

10.5kg

4pcs

BT120-05W-DT1-50F01

120mm

30/50W

typ.130

typ.3900/6500

<3/ Ra80/90

Y

L1500xW120xH64

13.0kg

4pcs

BT120-06W-DT1-60F01

120mm

30/60W

typ.130

typ.3900/7800

<3/ Ra80/90

Y

L1800xW120xH64

15.5kg

4pcs



Kingston01

Kingston02

Kingston03

Kingston04

Kingston05

Kingston06
