LED Warehouse Lighting: Types & Selection Guide

Warehouses often have high ceilings and large open spaces, making proper lighting important for daily operations. This guide explains common types of LED warehouse lighting and how to choose the right one for your needs.

• Suspended Linear Lights
They are usually long strips of light suspended from a pole, chain or other suspension device, providing wide and even lighting. Toppo's Polo Linear Suspension Lights have emergency lighting functions, even if the warehouse or factory suddenly loses power.

• High Bay Panel Lights

They are LED lamps designed for high bay installation, providing a wide range of lighting. At the same time, Toppo's advanced heat dissipation technology gives them a stable light output, suitable for harsh production industrial environments.

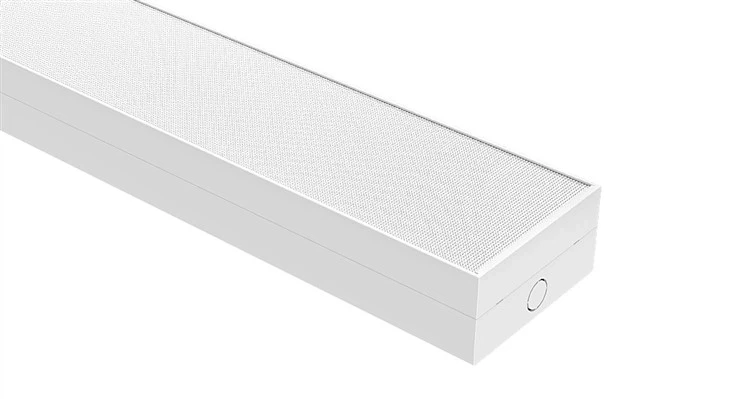

• Recessed Batten Lights
They are installed flush with the ceiling, saving space and creating a clean appearance. Kingston Batten use aluminum housing as the main heat sink to maintain good heat dissipation performance. It also provides a variety of size options for industrial environments of different sizes.

• Tri-Proof Lights
Toppo's Bico tri-proof lights have IP65 and IK10 protection ratings, waterproof, dustproof and impact-resistant, making them suitable for warehouses and factories with strict durability requirements. And it is easy to install and can be easily integrated into different industrial applications.

The following are the factors to consider when choosing the right LED warehouse lighting, each of which affects the lighting effect, energy efficiency and working environment comfort:

1. Warehouse Area and Height

Higher or large warehouses require higher power lamps and good light distribution. High bay lights are suitable for spaces with higher ceilings, while linear lights or slat lights can be selected for lower areas.

2. Shelf Layout

If the shelves are densely arranged, lamps with narrower beam angles should be selected to focus the lighting aisles; open areas are suitable for wide-angle lighting to maintain uniform lighting distribution.

3. Lamp Brightness

Different types of warehouse operations (such as picking, packaging, handling, etc.) have different requirements for lighting brightness. The appropriate lamp lumen value should be selected according to the type of operation. Generally, 300-500 lumens/㎡ is recommended for storage areas, and higher brightness is required for fine work areas to ensure efficiency and safety.

4. Color Rendering Index (CRI)

The color rendering index refers to the ability of light to restore the true color of an object. For warehouse operations that require identification of labels, packaging or product colors, it is recommended to select lighting equipment with a CRI of no less than 80 to ensure accurate judgment and reduce errors.

5. Color Temperature

Cold white light around 5000K is suitable for warehouse use and can improve concentration and clarity; if used in areas with high visual comfort requirements, a softer 4000K can be considered.

6. Beam Angle

Wide beam angles (>90°) are suitable for lighting open areas, while narrow beam angles (<60°) are suitable for illuminating high shelf aisles to improve lighting utilization.

7. Intelligent Lighting System

Integrated sensors (such as human body sensors or light sensors) and automatic dimming functions can automatically adjust brightness according to actual needs, save energy and reduce consumption, and extend the life of lamps.

8. Protection Level

In environments that are humid, dusty or vulnerable to impact, lamps with high IP (such as IP65) and IK (such as IK08 or above) ratings should be selected to ensure long-term stable operation.

Choosing the right LED warehouse lighting should not only consider brightness, but also factors such as shelf layout, warehouse area and height. Based on the above, you can understand the types of warehouse lighting and find the right warehouse lighting solution.

Toppo Lighting provides high-quality LED lighting fixtures suitable for different industrial environments. Please contact us for more product information and customized warehouse lighting solutions.
