Integrated LED Batten Vs T8 Tube Batten: Which Design Is Better For Commercial Projects?

Batten lights are widely used in commercial buildings, offices, retail stores, warehouses, and industrial facilities because their linear design suits a variety of general lighting applications. When choosing between integrated LED battens and T8 tube battens, commercial buyers need to consider more than the initial purchase price. The light source configuration affects installation compatibility, lighting performance, component replacement, and long-term maintenance. Understanding these differences helps contractors, distributors, and project managers select fixtures that meet their technical requirements and fit their installation conditions and operating budgets.

Batten light design influences how a fixture fits into a lighting system, how effectively it illuminates the working area, and how maintenance is handled over time. Integrated LED battens combine the light source and luminaire into one assembly, while T8 tube battens accommodate replaceable tubes. These differences affect installation planning, replacement procedures, and spare-part management, making fixture design an important consideration for both new construction and lighting renovation projects.

Integrated LED battens and T8 tube battens differ in several aspects of their design and practical use.

Before confirming a batten light specification, buyers should check the following project requirements:

• Lighting Requirements: Define target illuminance, lumen output, color temperature, color rendering, and glare-control requirements according to the activities performed in each space.
• Installation Configuration: Confirm whether surface-mounted, suspended, or recessed installation is required, and check fixture dimensions, cable entry positions, wiring arrangements, and link-through options.
• Product Configuration and Controls: Verify the availability and compatibility of selectable wattage, selectable CCT, dimming, emergency lighting modules, and motion sensors when these features are required.
• Electrical Compatibility: For retrofit projects, check existing lamp holders, ballasts, drivers, and wiring before deciding whether to retain the current fixture or replace it.
• Maintenance and Spare Parts: Confirm warranty terms, replacement-part availability, and whether the driver, LED module, or tube can be replaced independently.
• Total Project Cost: Compare purchase price, installation labor, estimated electricity consumption, maintenance expenses, and future replacement costs rather than evaluating the fixture price alone.

A suitable batten light should meet the project's installation requirements, operational priorities, and budget expectations.

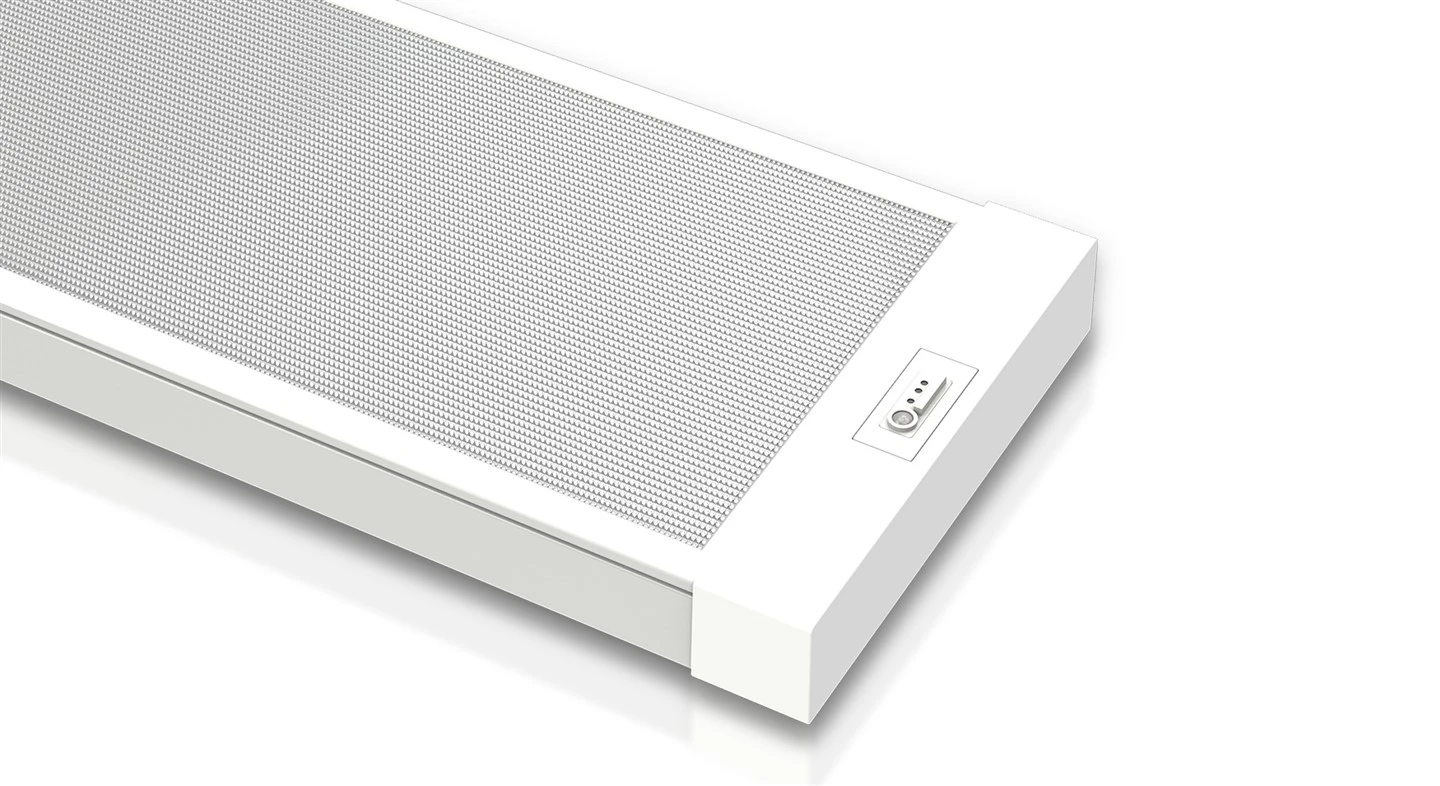

Choose Integrated LED Batten If:

• The project is a new build or a full lighting upgrade with no usable existing housing.
• Fixtures are mounted high or in hard-to-reach areas where maintenance access is difficult or costly.
• The lighting layout is fixed and performance is specified upfront, so no future changes to output or color are expected.
• A sealed, uniform appearance and a single part number for specification and procurement are preferred.
• The site wants to minimize ongoing tube purchases, lamp waste, and in-house maintenance tasks.

Choose T8 Tube Batten If:

• The project is a retrofit and existing housings are in good condition and electrically compatible.
• Fixtures are easily accessible, so tube replacement can be handled quickly by on-site staff.
• Lighting requirements may change over time, and output or color needs to be adjusted by changing compatible tubes.
• The budget favors lower initial fixture costs and reuse of existing installation materials.
• The maintenance plan is built around routine tube replacement rather than fixture-level service.

Integrated LED battens and T8 tube battens suit different commercial lighting requirements. Integrated designs are worth considering for new installations and upgrades that call for a complete LED luminaire, while T8 tube battens may remain practical when existing fixtures are compatible and replaceable tubes fit the maintenance plan. The right choice depends on installation conditions, lighting performance, electrical compatibility, and total operating costs. Toppo Lighting offers a range of batten lights, including T8 slim batten designs, multiple mounting options, and models with configurable wattage, CCT, and optical features for different commercial applications. Contact us to discuss your project requirements and identify a batten lighting solution that fits your installation conditions and technical specifications.
