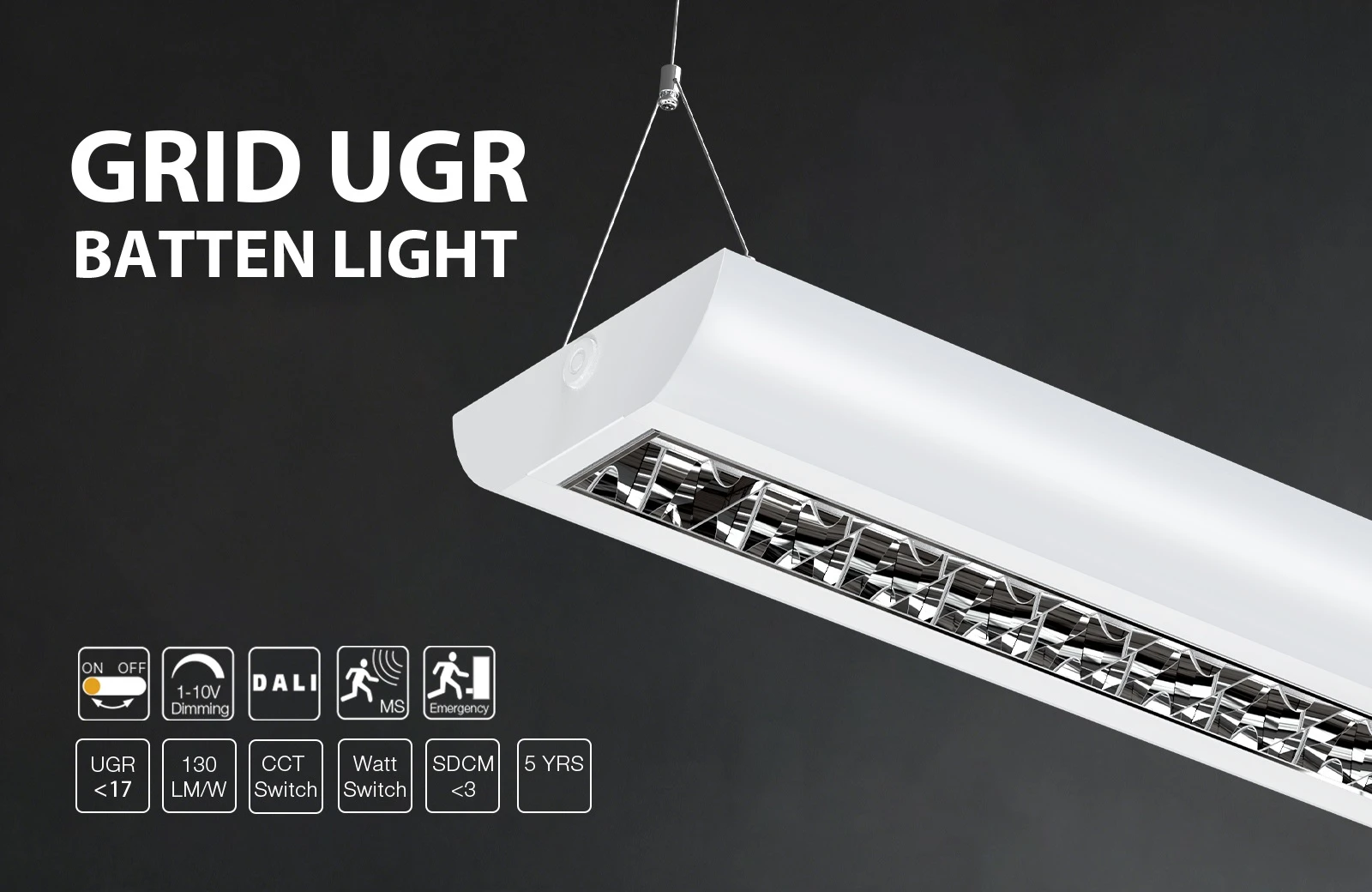

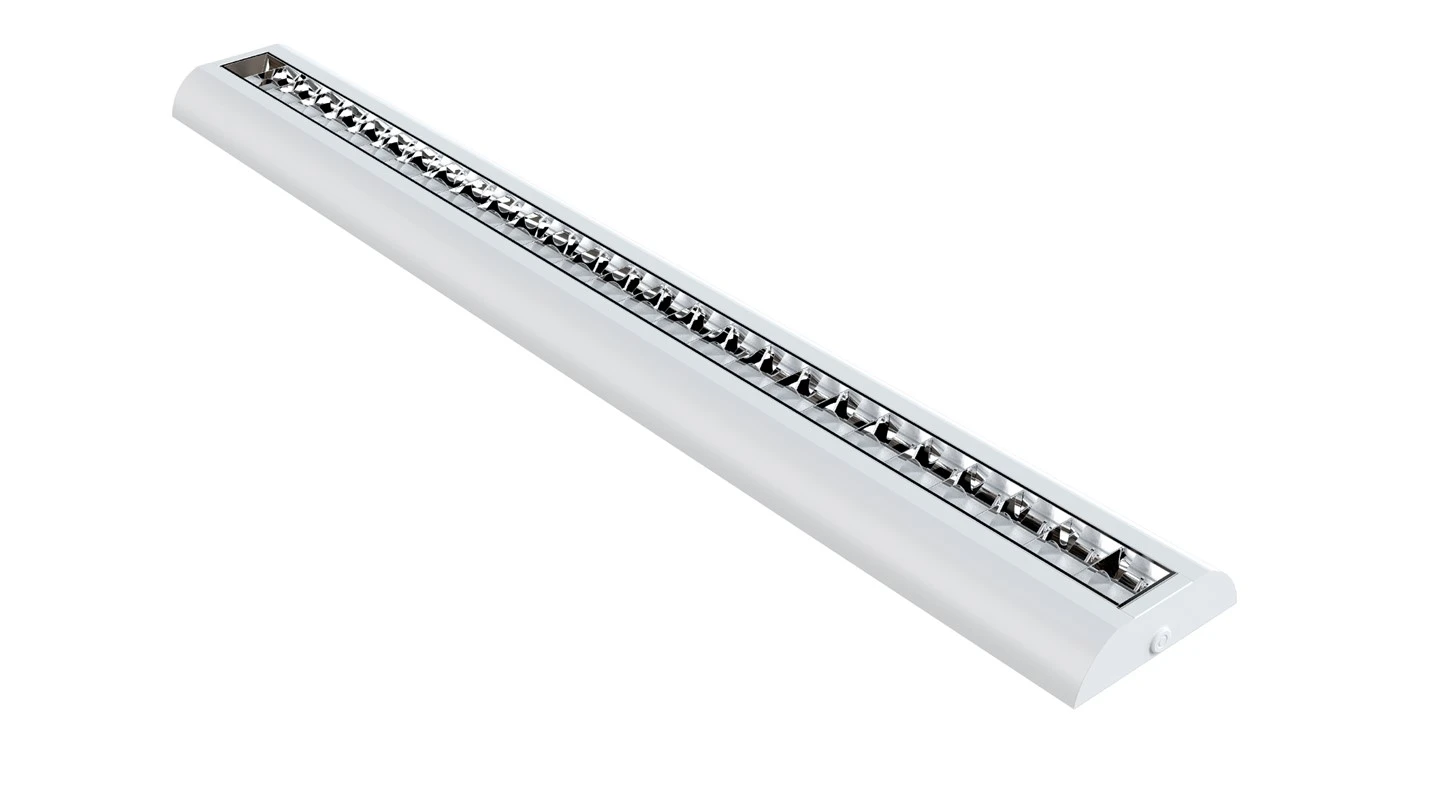

Grid UGR Batten Light

Grid UGR Batten Light

Description:

Grid batten fitting use the special designed steel grid to make the UGR data. It is the best LED module to replace the similar traditional light.









Feature:

> Low glare UGR＜17

> Power&CCT adjustable on LED driver

> High lumen output at 130-140lm/w

> Easy installation

> 5 years warranty

Send Inquiry
Download
Description
Technical Parameters

INTRODUCTION:

Grid Batten light fitting is the best LED batten light to replace the traditional grille light. They look similar, but are more energy efficient with high-efficiency LED chips built in. It features a special grille design to achieve UGR <17, low glare, and higher lumen output.



Order Code

Rated Power

LM/W

Lumen

SDCM/Ra

IP Class

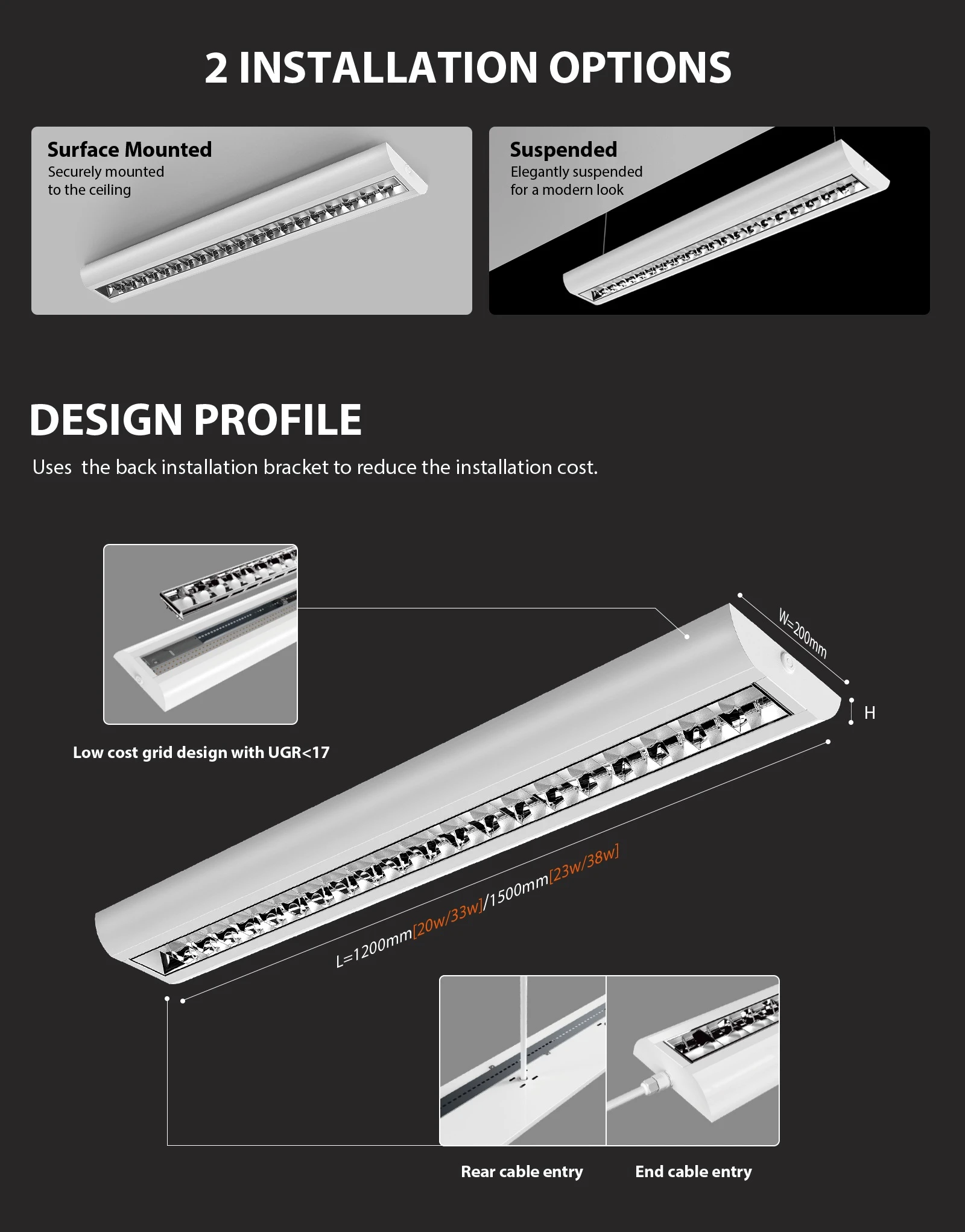

Product Dimension

GW/CTN

QTY/CTN
BH800-04W-PN1-35F01-00 20W/33W typ.130 typ.2600/4290 <3 / Ra80/90 IP20 L1200*W200*H57.5 7.0kg 6pcs
BH800-04W-PN1-40F01-00 23W/38W typ.130 typ.2990/4940 <3 / Ra80/90 IP20 L1500*W200*H57.5 12.0kg 6pcs



Hilton UGR batten -1



Hilton UGR batten -2



Hilton UGR batten -3



Hilton UGR batten -4
