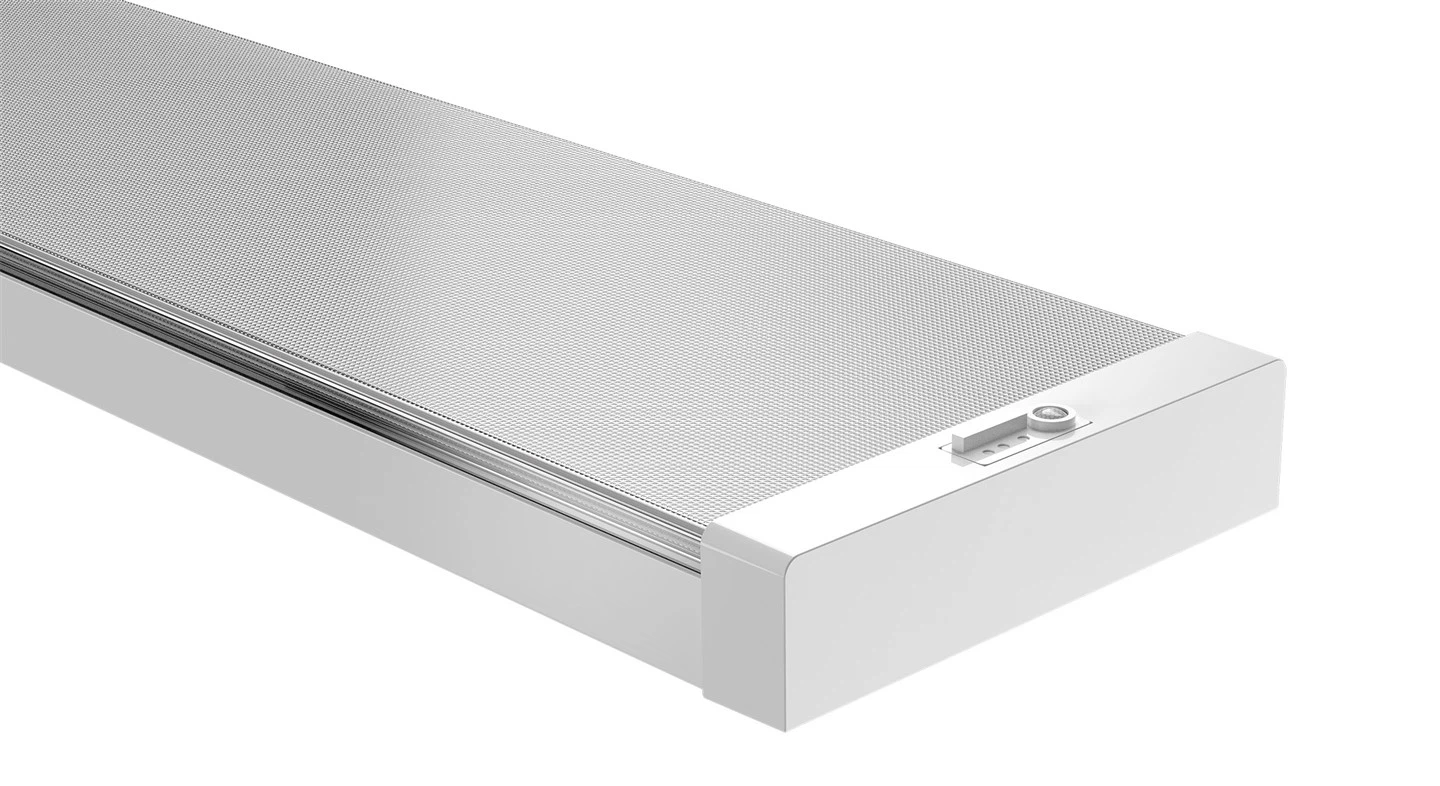

Kaston UGR Batten Light

Kaston UGR Batten Light

Description:

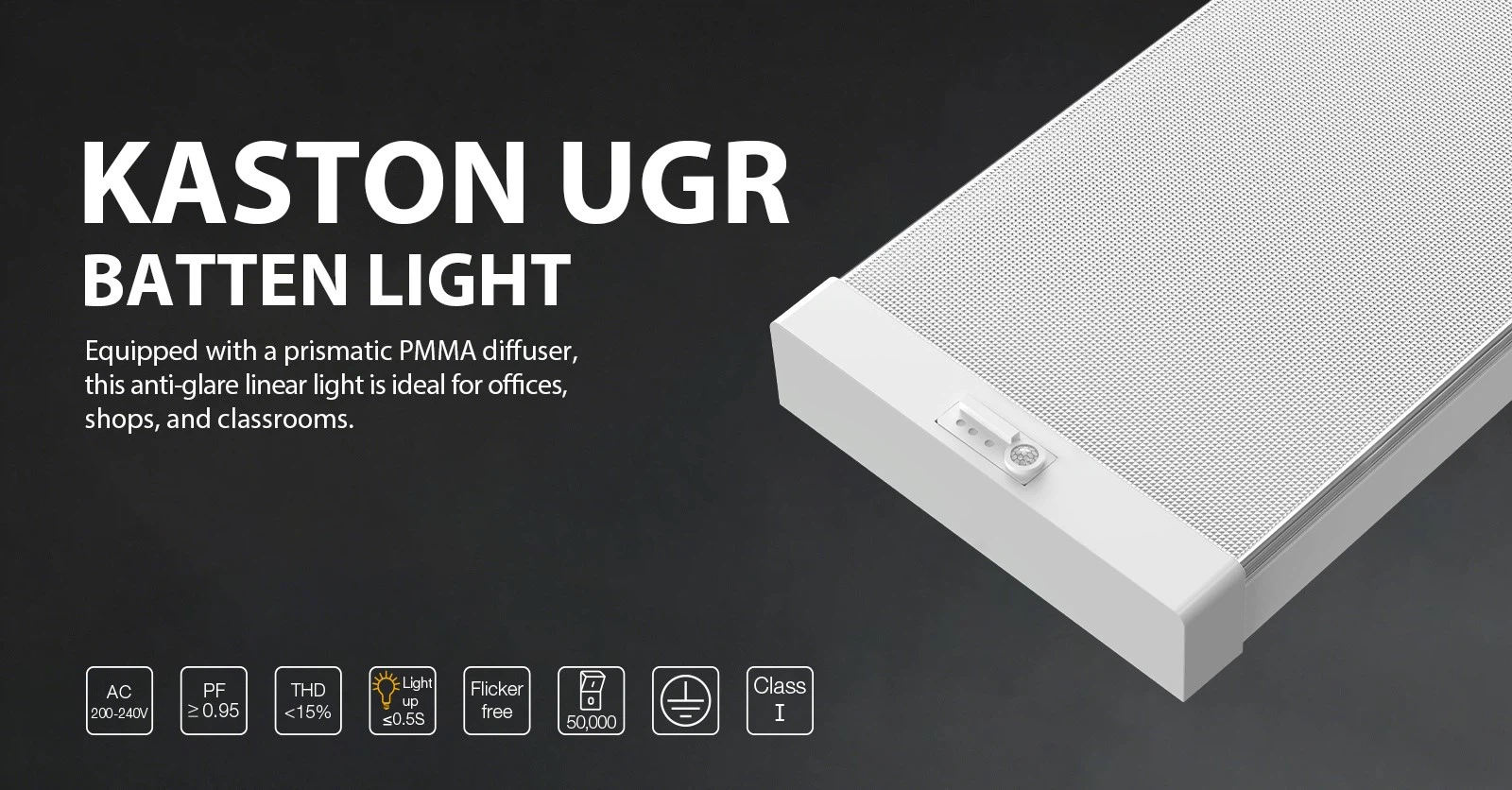

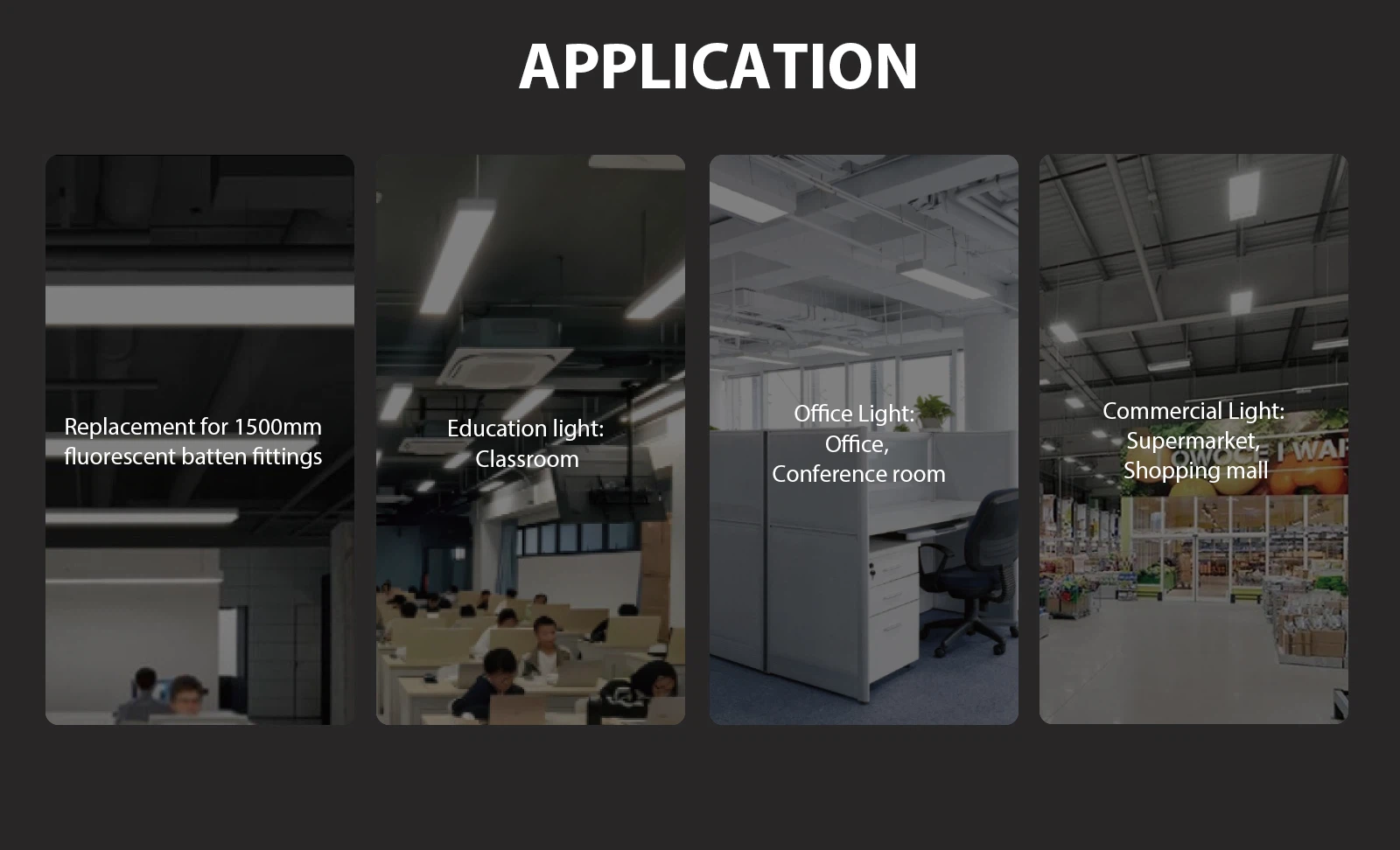

The Kaston batten lighting is a prefect replacement for traditional light. Aluminum housing provides an excellent thermal management. Opal PS diffuser provide high transparency. Excellent appearance is suitable for various high-end offices, hotel lobbies, conference rooms, classrooms.









Features:

> Elegant own design for office lighting.

> Prismatic diffuser with UGR<19

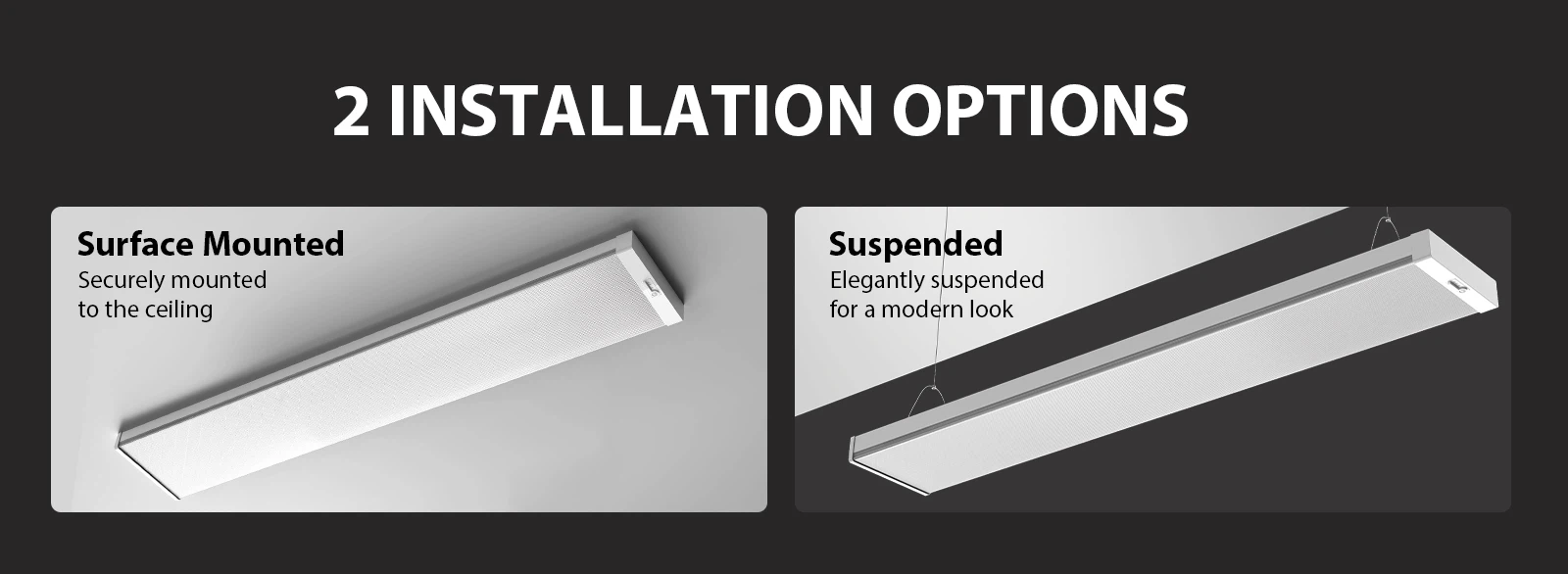

> Multiple Link installation optional

> Wattage & CCT switch

> Aluminum housing

Send Inquiry
Download
Description
Technical Parameters

INTRODUCTION:

Kaston UGR Batten 200MM is designed as a perfect led batten fitting for offices, conference rooms, classrooms or studios. Aluminum housing provides an excellent heat dissipation. Prismatic diffuser gives users a low glare ambient light. It is easy to install, with single link or multi-link options. With a modern look, it is the most popular strip light fixture.



Order Code

Width

Rated Power

LM/W

Lumen

UGR

CRI

SDCM

Watt/CCT
Switch

Product Dimension

GW/CTN

QTY/CTN
BT600-04W-KT1-40F01-00 1200mm 20/40W typ.130-140LM/W Typ.2600/5400

UGR<19

Ra80

<3

Y

 L1245xW200xH45

18.5kg

4pcs
BT600-05W-KT1-50F01-00 1500mm 30/50W typ.130-140LM/W Typ.3900/6700

UGR<19

Ra80

<3

Y

 L1545xW200xH45

22.0kg

4pcs


kaston201

kaston202

kaston203

kaston204

kaston205

kaston206







Hot Tags: kaston UGR batten light, China kaston UGR batten light manufacturers, suppliers, factory, elegant panel lights, showroom linear lights, warm white linear lights, diffused light panel lights, retail linear lights, backup panel lights
