Tri-proof LED Light Fixtures: Best Solution For Tunnels

Tunnel lighting is facing constant moisture, dust, and vibrations take a toll on standard fixtures. These lead to frequent failures. Now people tend to solve it with tri-proof LED lights. But what makes them the popular choice for tunnels? As the LED lighting expert, Toppo Lighting will break it down in this text.

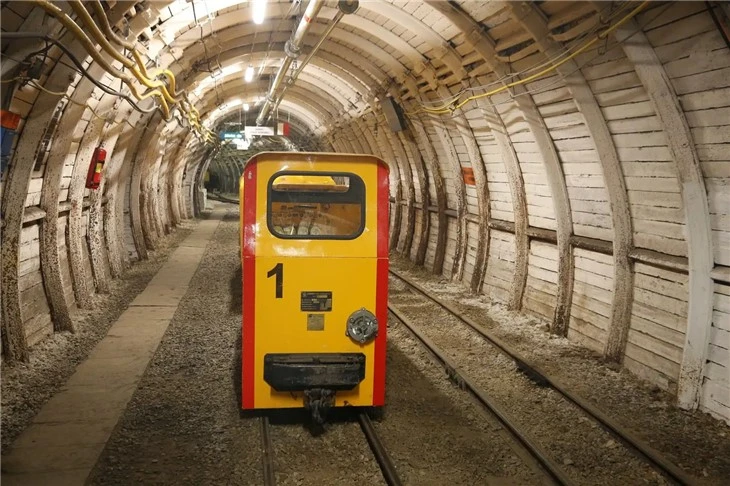

Tunnels expose lighting systems to constant stress. These mainly include the following:
• High humidity (from rain or groundwater)
• Vehicle emissions (CO₂and sulfides)
• frequent vibrations
• Airborne dust.

Traditional fixtures often can't keep up. They tend to rust, suffer from poor sealing that leads to short circuits, and require frequent replacements. Over time, this means higher maintenance costs and unreliable performance.

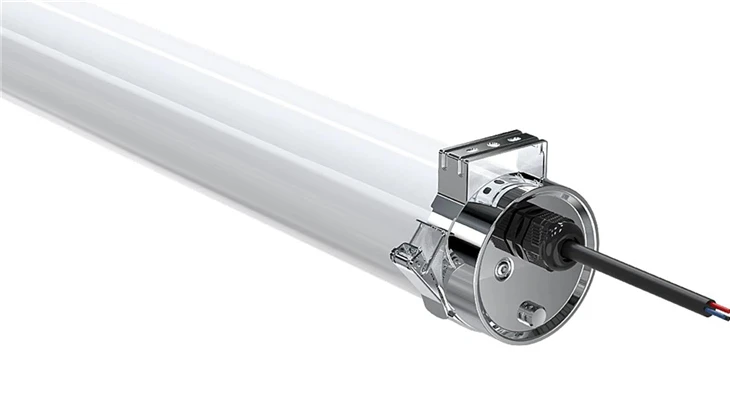

(1) Triple protection design
Our tri-proof LED light is specifically engineered for harsh environments like tunnels. It's constructed with corrosion-resistant aluminum and a PC shell, achieving an IP69K sealing rating and IK10 impact resistance grade. It reliably withstands tunnel conditions, including moisture, dust, vibrations, and regular high-pressure washdowns, with no short-circuiting or cracking.

(2) Energy Efficiency and Long Lifespan

LED lighting is more energy efficient than traditional lighting. It converts a higher percentage of electrical energy into light energy and generates very little heat. Its LED beads are made of semiconductor materials, without fragile filaments, making them more resistant to vibration and shock. So you don't need to spend much on fixing or changing it.

(3) Smart Optical Design
Many tri-proof LED lights are engineered for even and efficient light distribution. Their prism structures and diffused lens designs help reduce glare and eliminate dark spots, ensuring better visibility throughout the tunnel. Some models also has a dimmable design through sensors that adjust brightness based on real-time traffic flow, balancing safety with energy savings.

(4) Temperature Adaptability

Toppo's tri-proof LED lights are designed for wide temperature tolerance, operating reliably from -40°C to +50°C or higher. This performance is made possible by durable components such as PC or PMMA diffusers and a sealed housing structure that protects internal electronics from thermal stress. Whether in cold winters or hot summers, they maintain stable performance.

When selecting tri-proof LED lights for tunnels, consider the following factors:

● Lumen Output and Color Temperature

In tunnel lighting, main lights are usually required to achieve 10,000-20,000 lumens. This ensures that drivers have adequate visibility when transitioning from bright outdoor light to greater distances. 5,000-8,000 lumens are used for pedestrian walkways, to distribute the light evenly and concentratedly on both sides. In addition, emergency/exit lighting should achieve a minimum illumination of at least 1 lux to comply with the EN 60598-2-22 standard.

● IP Rating

Dust, water spray, and condensation are common in tunnel environments. A high ingress protection rating, such as IP65 or IP69K, ensures protection against dust and water. IP69K, in particular, is tested against high-pressure, high-temperature water jets, making it suitable for tunnels with regular cleaning or high humidity. These ratings are defined under IEC 60529.

● IK Rating

Tunnel fixtures must resist vibration from heavy traffic and occasional impact. An IK10 rating, as defined by IEC 62262, indicates protection against mechanical impact energy of 20 joules or more, equivalent to a 5 kg object falling from 40 cm. This helps prevent damage or loosening of fixtures in high-vibration areas.

● Energy Efficiency

LED tri-proof lights with high luminous efficacy (e.g., ≥130 lm/W) provide better energy performance. Models with DALI or 0–10V dimming allow adaptive lighting control based on traffic volume, which aligns with energy-saving recommendations in EU Green Public Procurement criteria for road lighting and helps reduce total cost of ownership (TCO).

● Installation Options

In tunnels, tri-proof lamps are generally installed on the tunnel ceiling or side walls. Their installation height maintains a 1.5:1 ratio with the lamp spacing, and the height is 5 to 7 meters. This design ensures that the light covers a large area of the road surface while avoiding excessive shadows or glare.

● Quality Standards and Certifications

Choose fixtures that comply with safety and performance standards such as CIE 88:2004 or EN 16276. For hazardous environments, make sure the product has explosion-proof certifications like ATEX or IECEx.

Tri-proof LED lights provide reliable, efficient, and durable performance in the challenging conditions of tunnel environments. Their robust design and smart features support long-term use in tunnels while keeping maintenance needs to a minimum.

Toppo Lighting offers reliable tri-proof LED fixtures and customized lighting solutions for tunnel applications. We also provide a variety of other products, including batten lights, bulkhead lights, and more. If you are interested, please contact us for expert support and personalized lighting advice.
