Introduction
Modern lighting buyers, from homeowners to facility managers, now look for fixtures that adapt to their needs, save energy, and deliver visual comfort. Among the most versatile options in this trend are dimmable LED batten lights, thanks to the sleek aesthetics, high efficiency, and adjustable brightness.
In this guide, we've selected the Top 5 Dimmable LED Batten Lights for office and homes in 2025, evaluated for their performance, build quality, and dimming control options. You'll also learn how LED dimming works and which specifications matter most before making a purchase. Let's get started!
How Does Dimming Work in LED Batten Lights?
Dimming in LED fixtures isn't just about lowering brightness, but also about controlling the current and pulse width to achieve both energy savings and mood adaptability. Let's break it down briefly:
-
0–10V Dimming
-
DALI Dimming
-
Triac / Phase-Cut Dimming
-

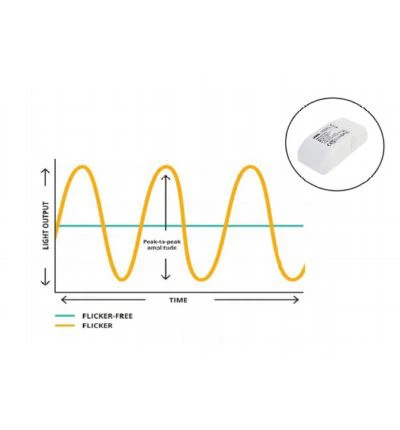

Flicker-Free Drivers
Why Do Buyers Choose a Dimmable LED Batten Light?
A dimmable batten light offers more energy savings, and transforms how light interacts with a space through:
(1) Energy Efficiency: Reduce power usage when full brightness isn't needed.
(2) Visual Comfort: Adjust brightness to reduce glare, fatigue, and eye strain.
(3) Smart Control Ready: Compatible with automation and sensor systems.
(4) Enhanced Ambience: Tailor light intensity for different times of day or mood.
(5) Long-Term Savings: Less energy waste and longer LED lifespan mean lower maintenance costs.
Top 5 Dimmable LED Batten Lights in 2025
Philips LED ProjectLine All-in-One Strip Batten 40/33/29W
The ProjectLine Strip Batten is a linear LED light fixture from Philips that offers multiple light settings in a single unit, controlled by your existing light switch. The adjustable power levels and clean design make it a plug-and-play upgrade for quick installations.
Key Features:
• Selectable wattage: 29W / 33W / 40W output options.
• Luminous efficacy: up to 120 lm/W, delivering bright and uniform light.
• Color temperature: 4000K neutral white (ideal for offices).
• Dimming: Compatible with 0–10V dimming systems.
• Construction: Integrated LED with robust aluminum housing and opal diffuser.
• Installation: Uses integrated clips for a screw-free mounting and has a GU10 connector for simple bulb attachment.
Best for:
Office, garages, workshops, and basements.
Panasonic LED Tri Color Batten
Panasonic LED Tri Color Batten, a versatile lighting solution that adapts to any setting. It allows users to switch between warm, neutral, or daylight tones via a built-in toggle switch, for the mood they want of a space.
Key Features:
• Tri-color CCT switchable: 3000K / 4000K / 6500K.
• High luminous efficacy: ~110 lm/W.
• Power options: Available in 18W / 36W.
• Dimming compatibility: Supports Triac dimming.
• Build: Slimline Polycarbonate Polycarbonate housing with glare-free diffuser.
• Safety: Comes with surge protection, safety compliance like the Bureau of Indian Standards (BIS).
Best For:
Homes, restaurants, and offices needing flexible mood lighting.
Toppo Lighting Kaston UGR Batten Light 200mm
The Kaston UGR series is built for professional illumination, delivering smooth dimming, glare-free lighting, and modular connectivity. Its aluminum housing provides an excellent heat dissipation, while the prismatic diffuser gives users a low glare ambient light.
Key Features:
• Visual comfort: UGR<19 glare control, flicker-free driver.
• Multiple dimming options: 0–10V, DALI.
• Power range: 25/30/35/40 W, Efficacy up to 140 lm/W.
• CCT range: 3500K–6800K.
• Mounting options: Surface, suspended, or linkable installation.
• Optional extras: Motion sensor, emergency backup, or DALI integration.
Best For:
Offices, classrooms, healthcare facilities, and studios.
TUBU IP66 LED Batten Light L10-S Series Pro
The TUBU IP66 LED Batten Light L10-S Series Pro is a flicker-free, energy-efficient light LED light fixture designed for harsh environments. It features an IP66 rating for dust and water protection and an IK10 rating for impact resistance.
Key Features:
• Selectable power & CCT: 18W–60W, 2700K to 6500K.
• Efficacy: Up to 185Lm/W.
• Dimming options: 0–10V or DALI dimming.
• Driver: Isolated, flicker-free and SAA, CE, and RoHS certified.
• Materials: Aluminum body with PC diffuser, anti-corrosion coating.
• Extra functions: Microwave sensor & emergency version available.
• Installation: Allows for straight-through wiring with options for 5x2.5mm² cables and includes a safety rope.
Best For:
Office, Warehouses, car parks, tunnels, cold storage.
Osram SubstiTUBE T8 Motion Sensor Dimmable Batten
The SubstiTube T8 motion sensor allows for quick, easy, and safe replacement of fluorescent lamps without rewiring conventional control gear (CCG). This LED tube features an integrated microwave sensor with motion detection, saving up to 90% in energy savings.
Key Features:
• Visual comfort: UGR<19 glare control, flicker-free driver ensures eye-friendly illumination.
• Multiple dimming options: 0–10V, DALI, and optional non-dimmable models.
• Power range: 25 / 30 / 35 / 40 W, efficacy up to 140 lm/W.
• CCT range: 3500K–6800K (warm to cool white).
• Mounting options: Surface, suspended, or linkable installation for flexible layout.
• Optional extras: Integrated motion sensor, emergency backup, or DALI system integration.
Best For:
Offices, classrooms, healthcare facilities, and studios.
Quick Comparison Table
|
Brand |
Model |
Wattage Range |
Efficacy |
CCT Range |
Dimming |
Key Feature |
Official Website |
|
|
LED ProjectLine All-in-One Strip Batten |
29–40W |
Up to 120 lm/W |
4000K |
0–10V |
Multiple power settings, plug-and-play installation |
|
|
|
LED Tri Color Batten |
18–36W |
~110 lm/W |
3000K / 4000K / 6500K |
Triac |
Tri-color CCT switchable, slimline glare-free diffuser |
|
|
|
Kaston UGR Batten Light 200mm |
25–40W |
Up to 140 lm/W |
3500K–6800K |
0–10V / DALI |
UGR<19, flicker-free, optional motion/emergency/DALI |
|
|
|
IP66 LED Batten L10-S Series Pro |
18–60W |
Up to 185 lm/W |
2700K–6500K |
0–10V / DALI |
IP66 & IK10, microwave sensor & emergency, high efficiency |
|
|
|
SubstiTUBE T8 Motion Sensor Dimmable Batten |
25–40W |
Up to 140 lm/W |
3500K–6800K |
0–10V / DALI |
Integrated motion sensor, flicker-free, flexible mounting |
How to Choose the Right Dimmable LED Batten Light?
When selecting a dimmable batten light, a few factors ensure you get the right fixture for your needs:
(1) Brightness (lm/W): Look for higher luminous efficacy, typically above 110 lm/W to reduce energy costs.
(2) Glare (UGR): For offices or study areas, choose UGR designs to minimize visual fatigue. UGR<19 batten fixtures (like Toppo Kaston) are popular for that.
(3) Installation Type: Decide whether surface-mounted, recessed, or suspended installation suits your layout.
(4) Dimming Compatibility: Verify support for 0–10V, DALI, or Triac dimming, depending on your control system.
(5) Warranty & Certifications: Ensure your product meets key standards like CE and RoHS. Learn more in our detailed article: Key Certifications to Look for When Importing LED Lights.
(6) Environment Suitability: For humid or industrial zones, opt for IP65/IP66 waterproof models.
In short, a dimmable LED batten light of high luminous efficacy, low glare, and dimming control always perform better with comfort lighting than normal ones.
FAQs
Q: Are all LED batten lights dimmable?
A: No, not all models are dimmable. Always check if the product supports 0–10V, DALI, or TRIAC dimming before purchase.
Q: What's the best color temperature for office lighting?
A: A neutral white tone (around 4000K) provides balanced brightness and reduces eye strain, making it ideal for offices and classrooms.
Q: Can I customize wattage or CCT for my project?
A: Absolutely! Many batten light manufacturers like Toppo Lighting offer customizable wattage and CCT options, to match your specific lighting design or energy cost goal.
Conclusion
From Philips' adjustable ProjectLine to Toppo Lighting's UGR-certified Kaston Light, there's a solution for every space, whether residential, commercial, or industrial. If you're planning to wholesale or custom these LED batten lights, ensure their dimming functions as you want, and comply with standards in the target market to avoid project delay.
