INTRODUCTION:

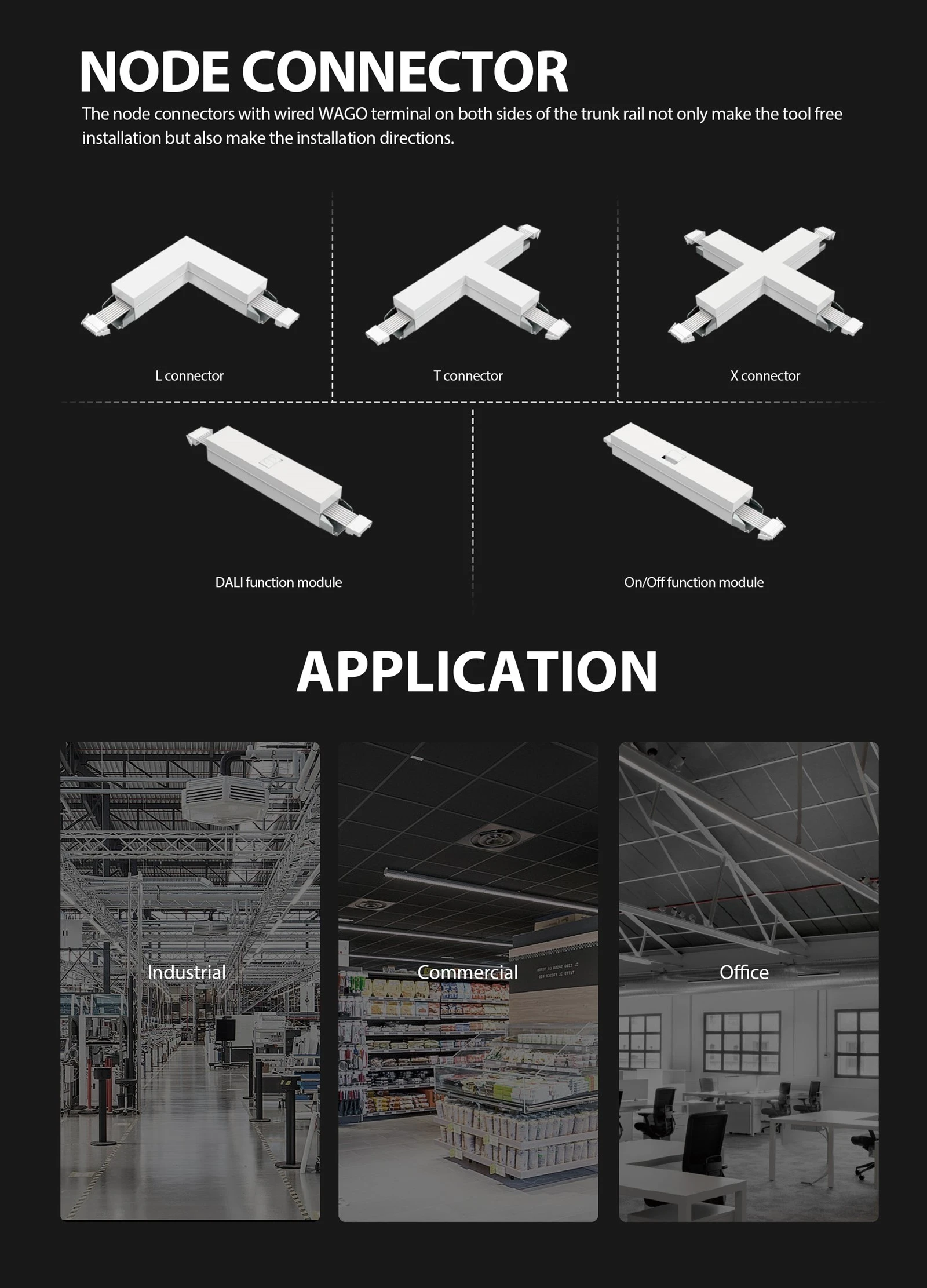

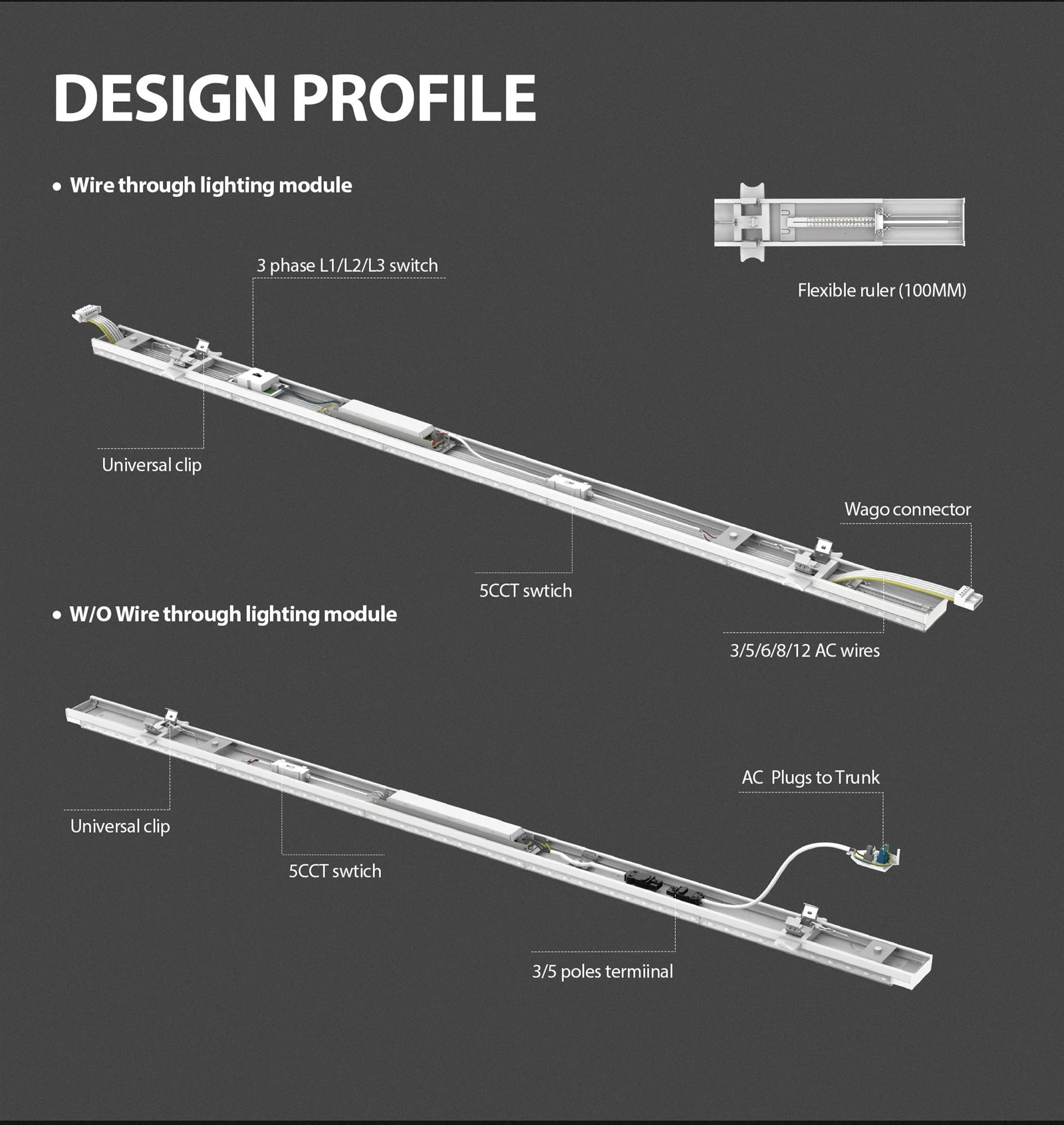

Retro Flex comes with a set of pre-wired connection wires, making it completely independent of the backbone of the installation. The WAGO connection terminal provides a quick and easy way to connect module after module. Both the 5-wire on/off version as well as the 7-wire dimming version feature a 3-phase line switch rated at 400V to create a variety of installation scenarios.
PROPERTY:

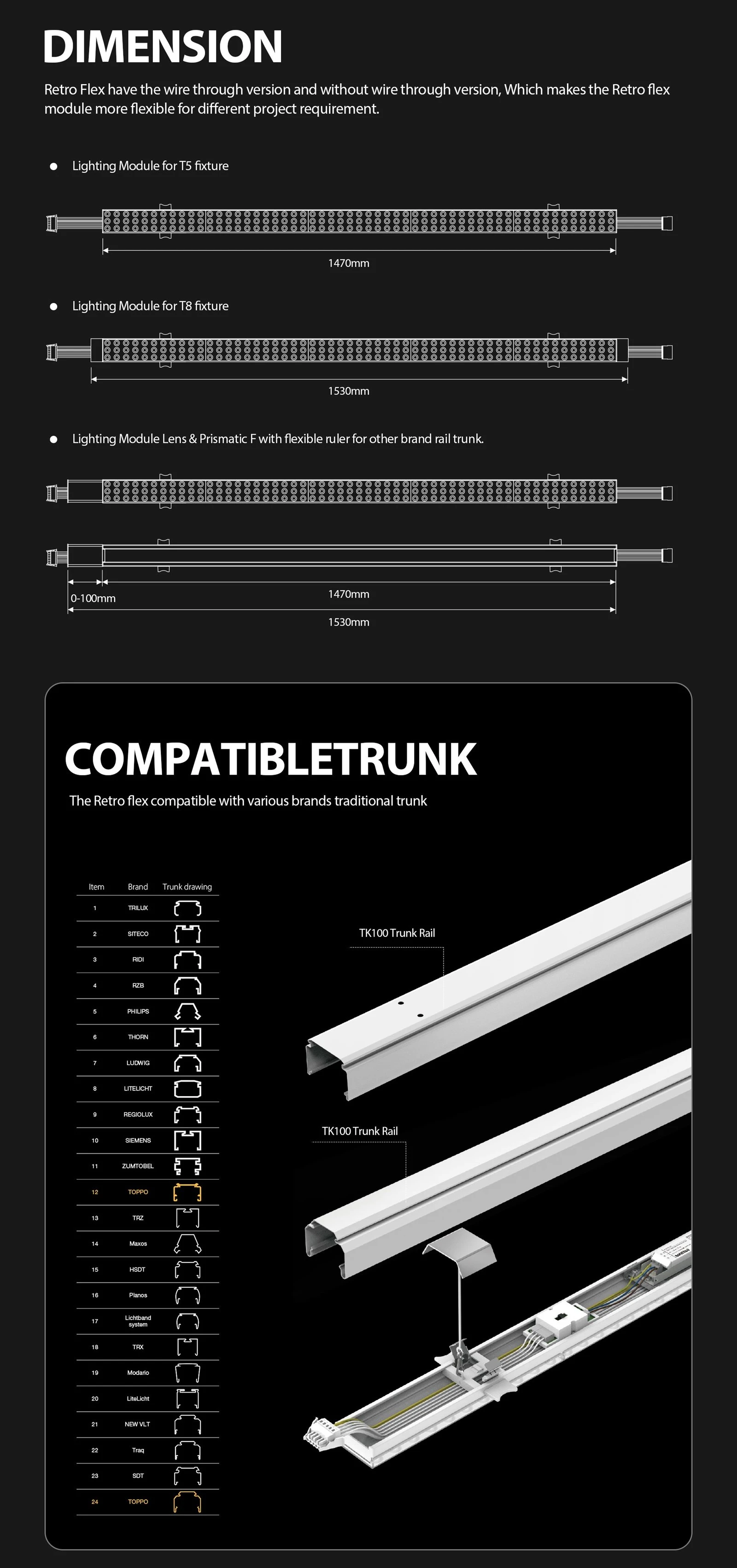

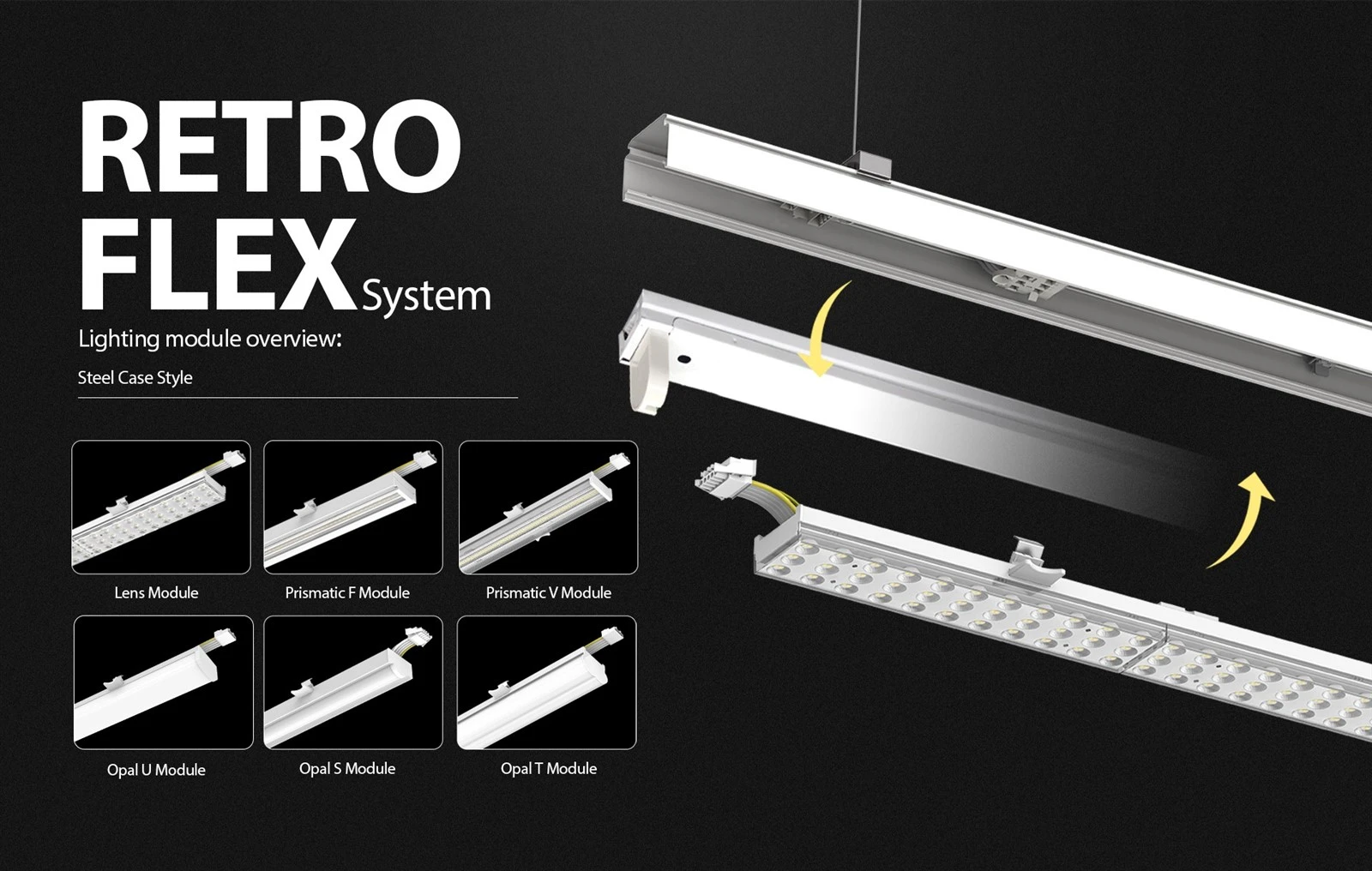

Retro Flex comes with a smart clip on LED module that can be mounted into traditional light boxes of different brands such as: Philips, Trilux, Zumtobel, Siteco, Ridi and many more. Its flexible and self-centering clamping system allows this module to be mounted on a wide range of light boxes.
What is the difference between linear fluorescent and LED lights? Retro Flex comes with its own set of pre-wired connections wires, making it completely independent of the trunk it is installed in. The WAGO connection terminal provides a quick and easy way to connect one module to another.
|
Cover |
Order Code |
Rated Power |
LM/W |
Lumen |
SDCM/Ra |
IP Class |
Product Dimension |
GW/CTN |
QTY/CTN |
|
Lens optic |
RF100-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lens optic |
RF100-05W-DT1-60F01 |
40-60W |
Typ.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lens optic |
RF100-05W-DT1-70V01 |
50-70W |
Typ.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lens optic |
RF100-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lens optic |
RF100-05W-DT1-70D01 |
35-70W |
Typ.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Lens optic |
RF100-05W-DT1-75F01 |
35-75W |
Typ.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Prismatic optic F |
RF130-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatic optic F |
RF130-05W-DT1-60F01 |
40-60W |
Typ.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatic optic F |
RF130-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatic optic F |
RF130-05W-DT1-70D01 |
35-70W |
Typ.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Prismatic optic F |
RF130-05W-DT1-75F01 |
35-75W |
Typ.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-60F01 |
40-60W |
Typ.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-70V01 |
50-70W |
Typ.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-70D01 |
35-70W |
Typ.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75F01 |
35-75W |
Typ.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
