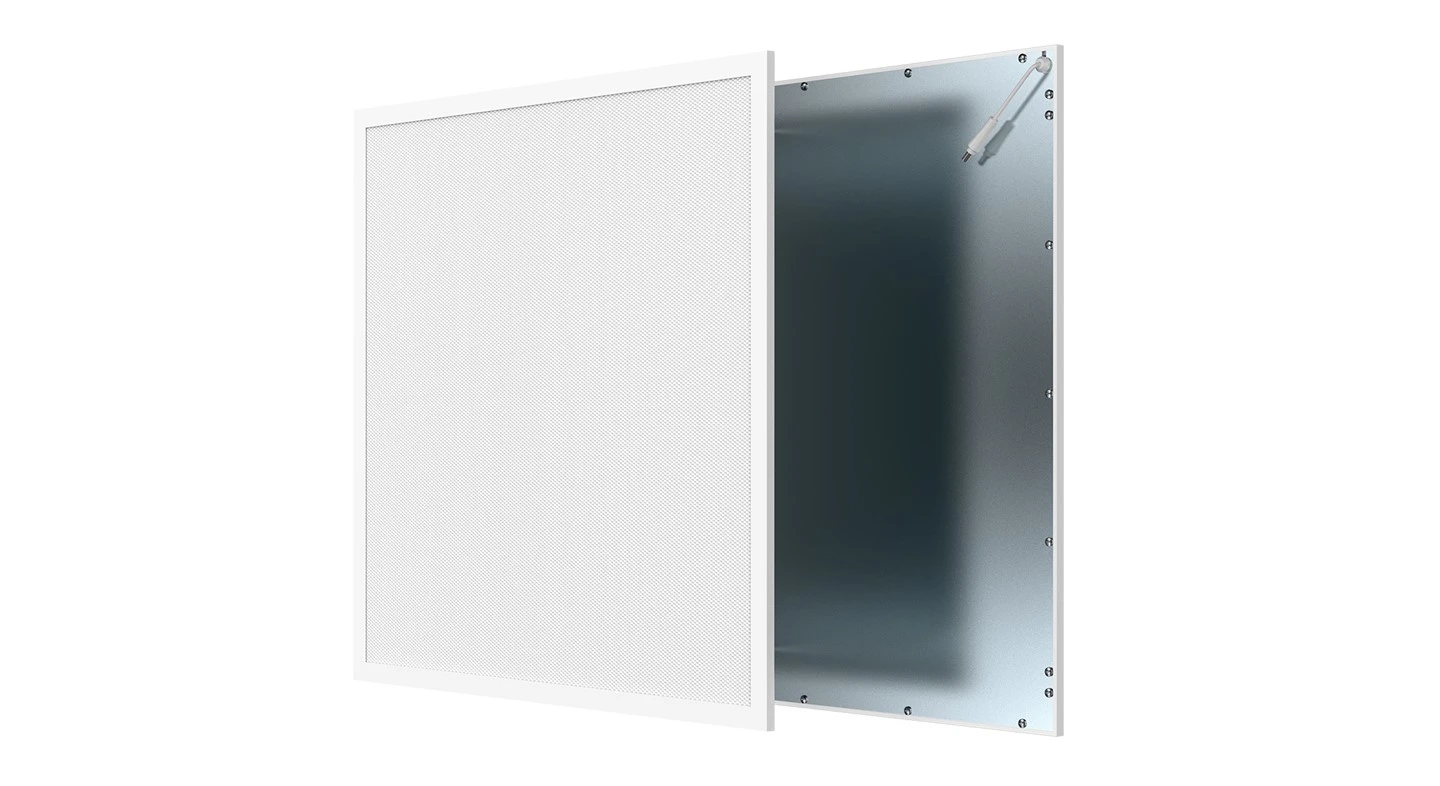

Edgelit Panel Light

Edgelit Panel Light

Description:

PN200 Edge-lit panel is a effective cost panel. PMMA LGP produce uniform light high lumen output up to 140LM/W, it can fit seamlessly into any work place, it is available in recessed, suspended and surface mounted installation method. It makes the panels were widely use on various of applications.









Feature:

> Ultra flat casing: 10mm

> Up to 130lm/W

> White frame color: RAL9016

> Flicker free & 5 years warranty

Send Inquiry
Download
Description
Technical Parameters

INTRODUCTION:

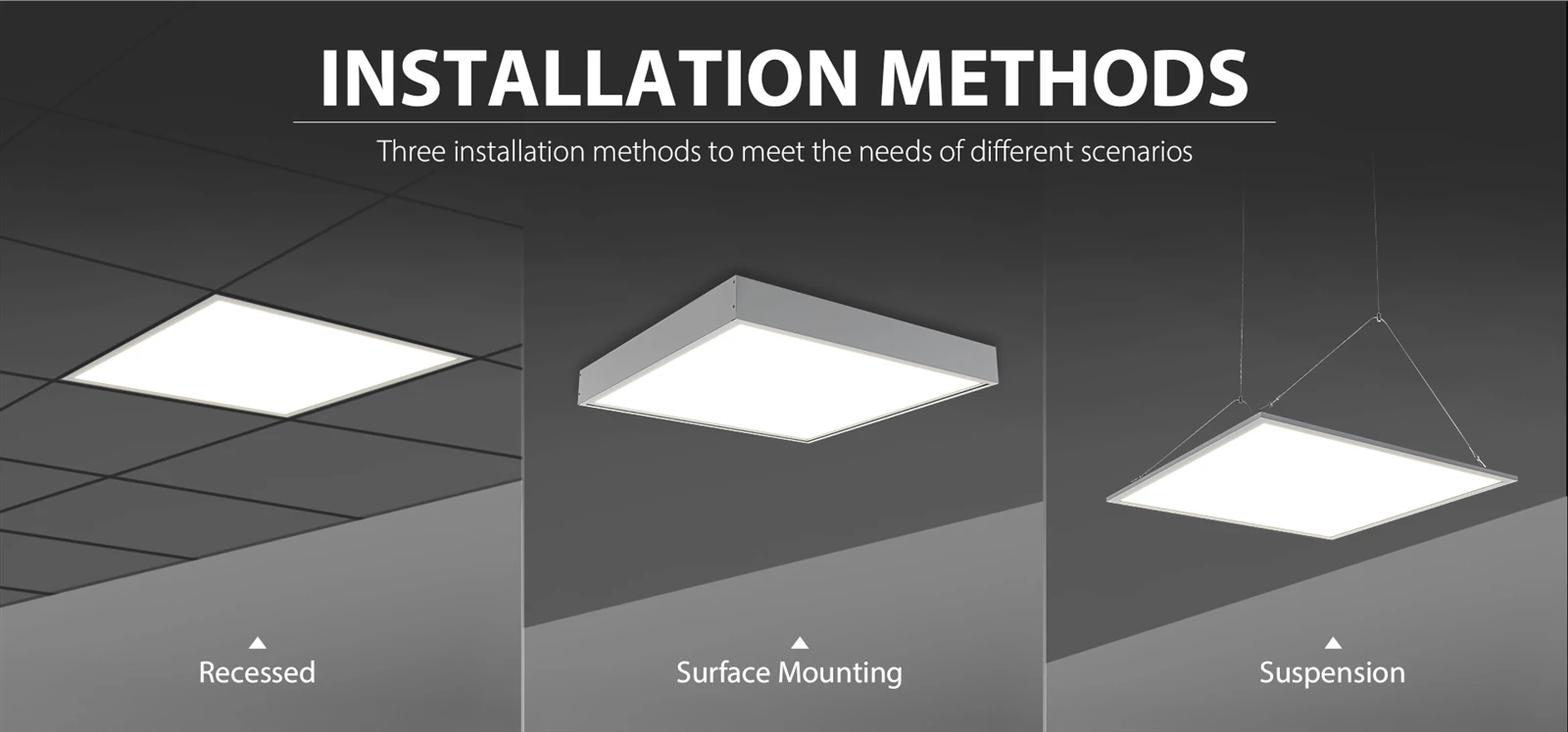

The Toppo PN200 LED Flat Panel is an efficient, cost-effective edge-lit solution. The PMMA LGP produces uniform light with a lumen output of up to 140lm/W, blending seamlessly into any workplace. It can be installed using recessed, suspended and surface mounted methods, making the 60x60 LED suitable for a wide range of applications.

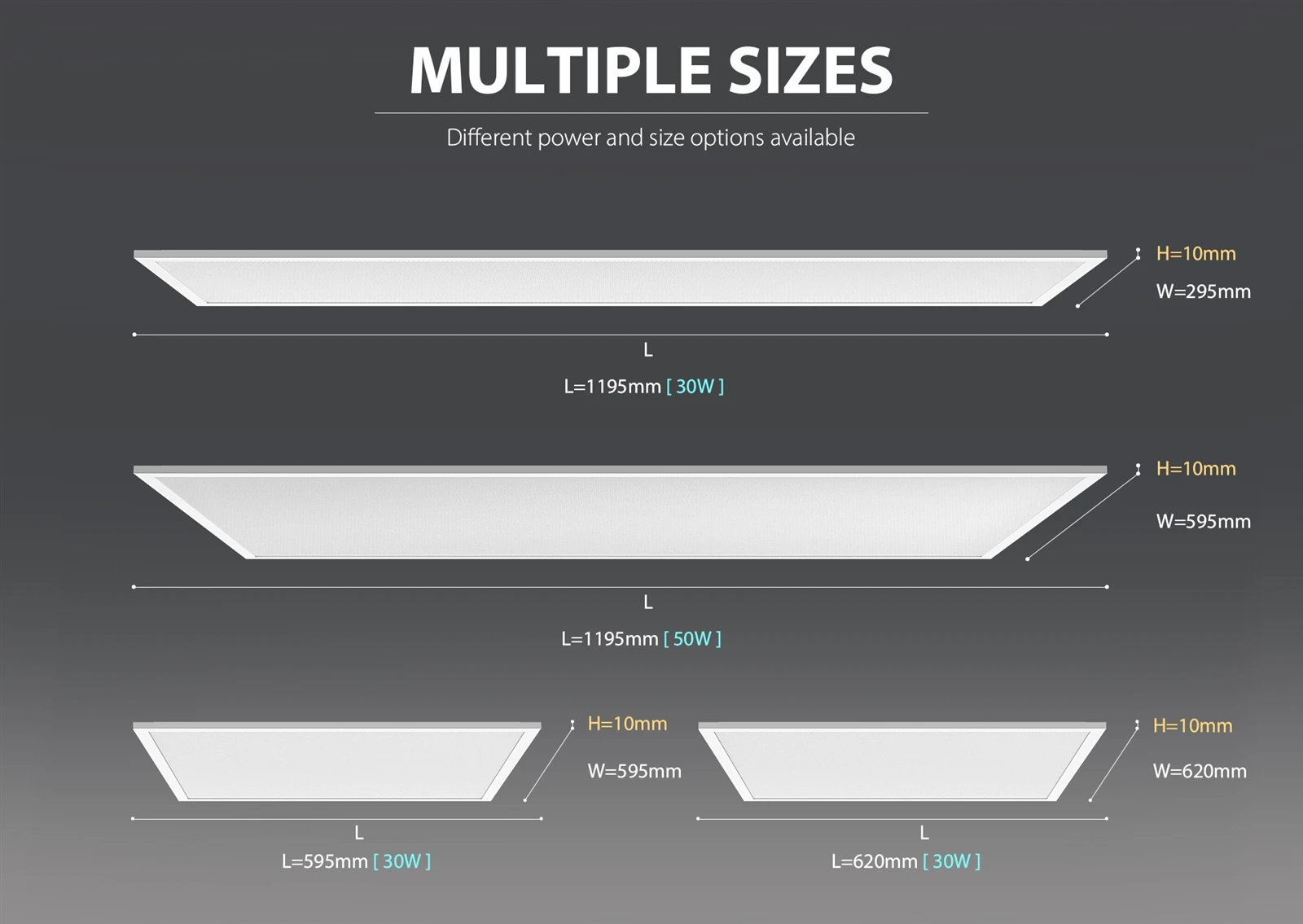

Order Code Rated Power LM/W Lumen SDCM/Ra IP Class Product Dimension GW/CTN QTY/CTN
PN2XX-22W-SN1-30F01-00 30W typ.130 typ.3900 <3 / Ra80/90 IP20/IP44/IP65 L595*W595*H10 13.0kg 4pcs
PN2XX-41W-SN1-30F01-00 30W typ.130 typ.3900 <3 / Ra80/90 IP20/IP44/IP65 L1195*W295*H10 16.5kg 5pcs
PN2XX-42W-SN1-50F01-00 50W typ.130 typ.4500 <3 / Ra80/90 IP20/IP44/IP65 L1195*W595*H10 12.0kg 2pcs
PN2XX-62W-SN1-30F01-00 30W typ.130 typ.3900 <3 / Ra80/90 IP20/IP44/IP65 L620*W620*H10 16.0kg 4pcs

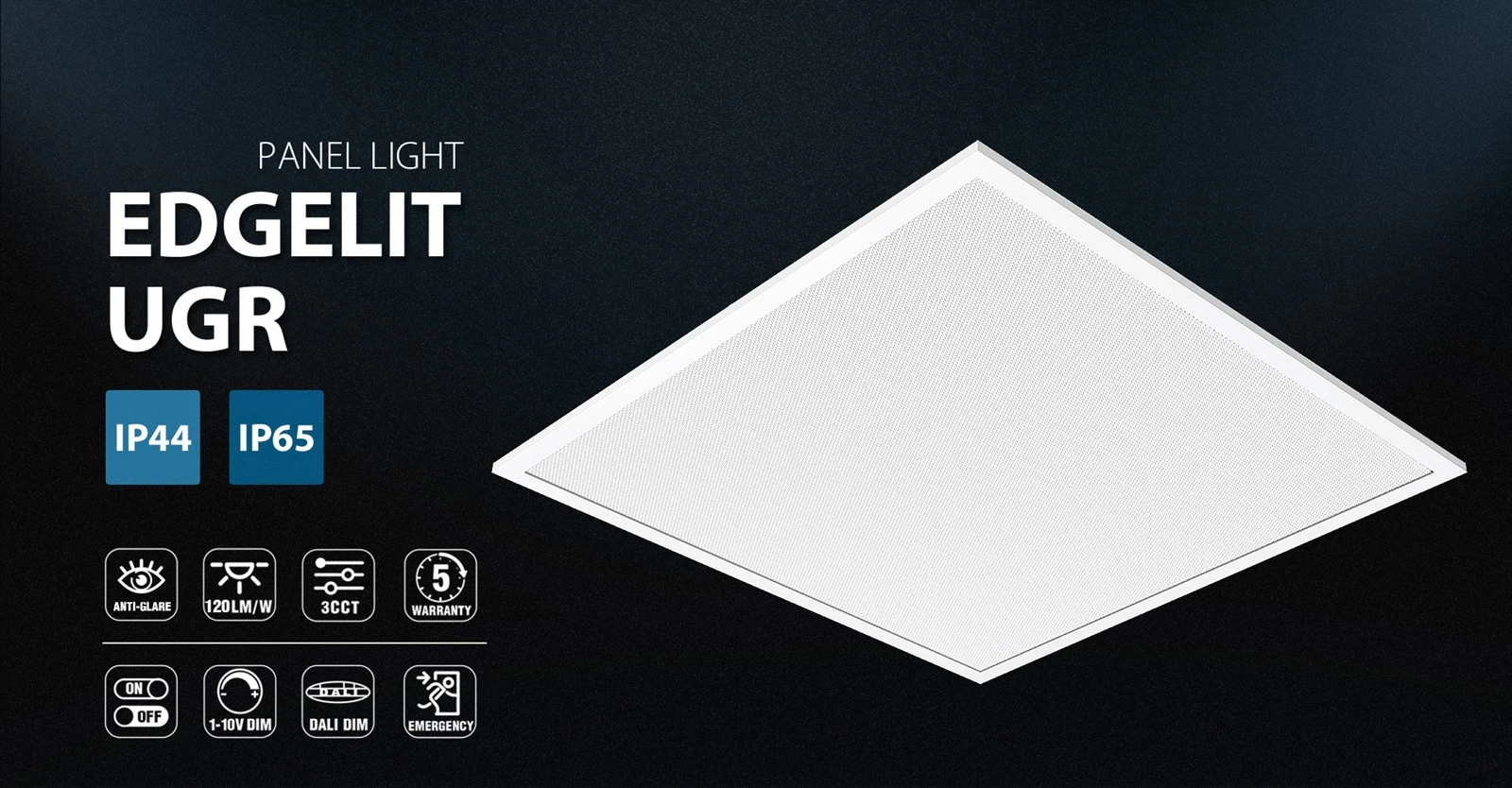

EdgeLit -1

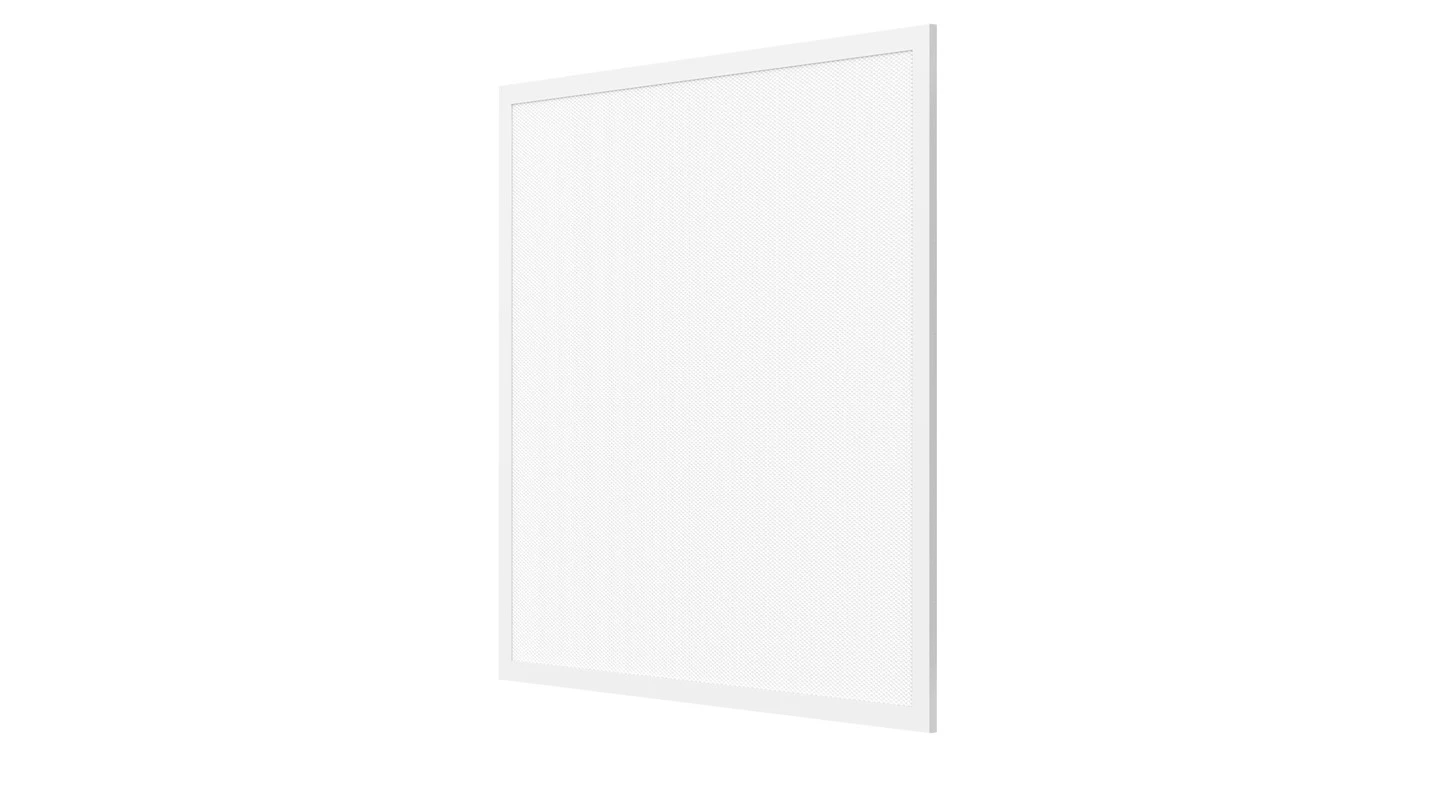

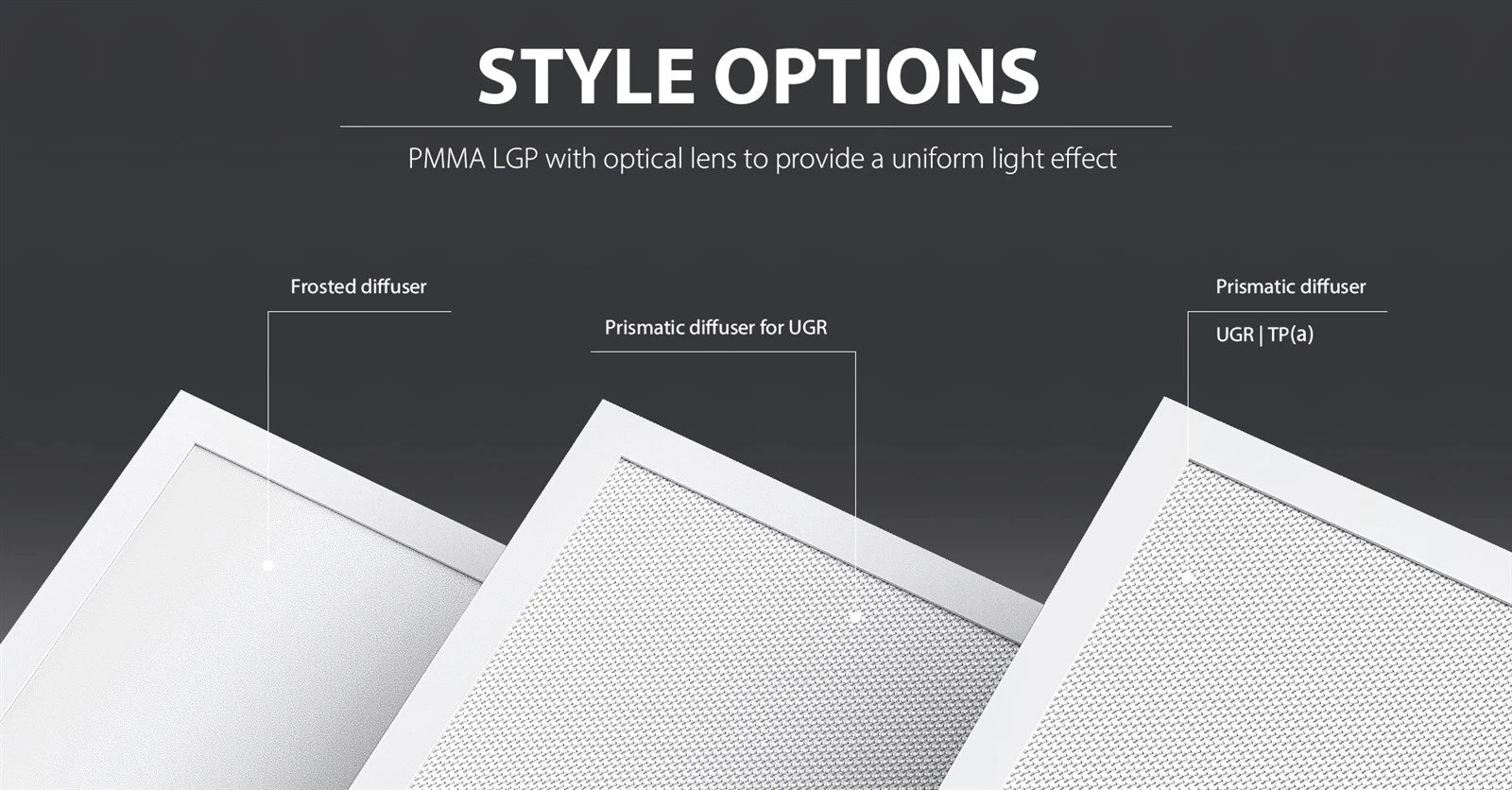

EdgeLit -2

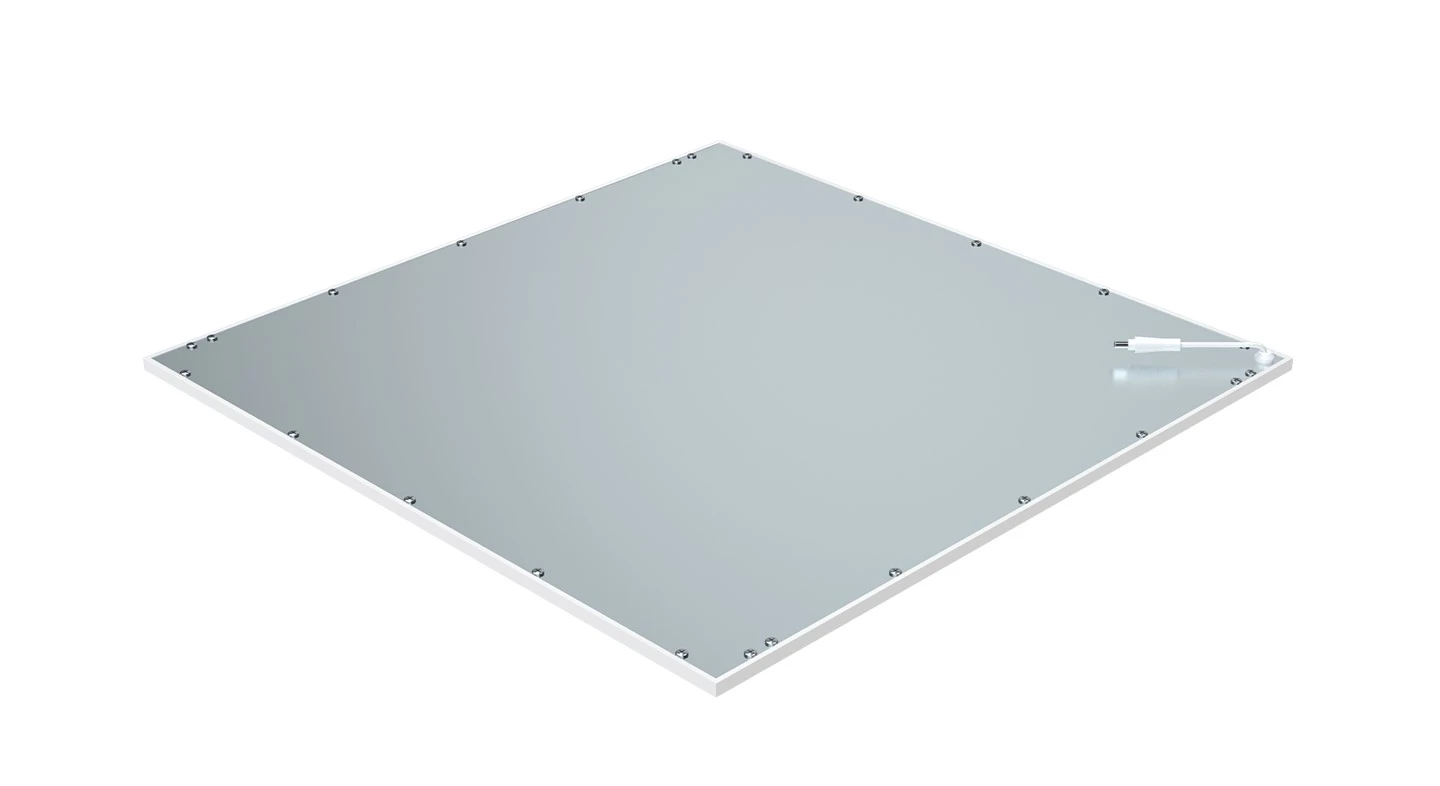

EdgeLit -3

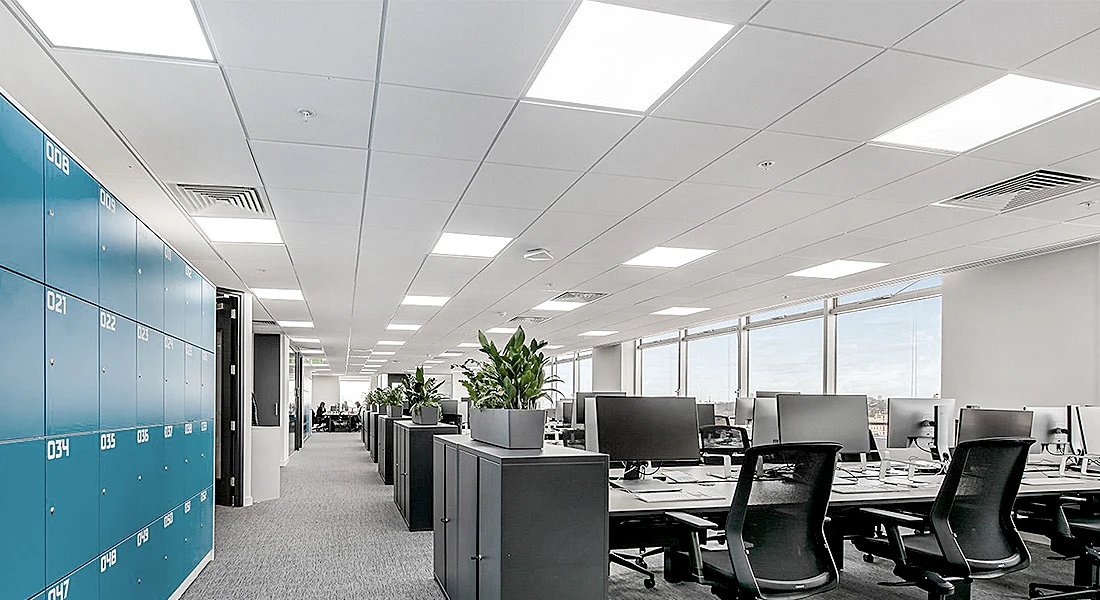

EdgeLit -4

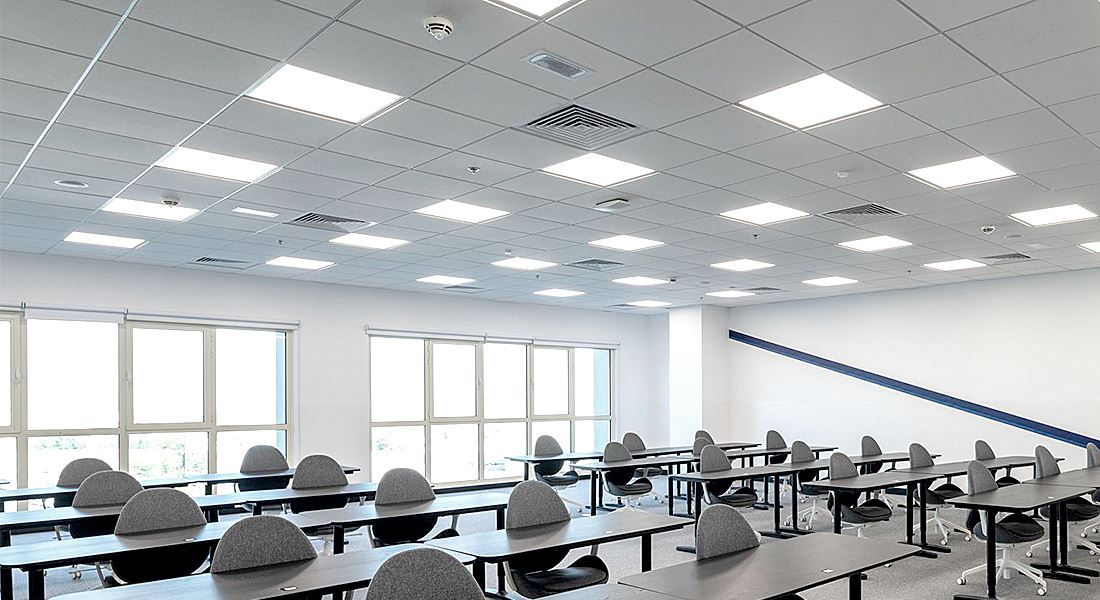

EdgeLit -5
